V2 R.B.S.L fits Hardpark Axles

Now In Stock!!

R.B.S.L. V2's are here!!!!

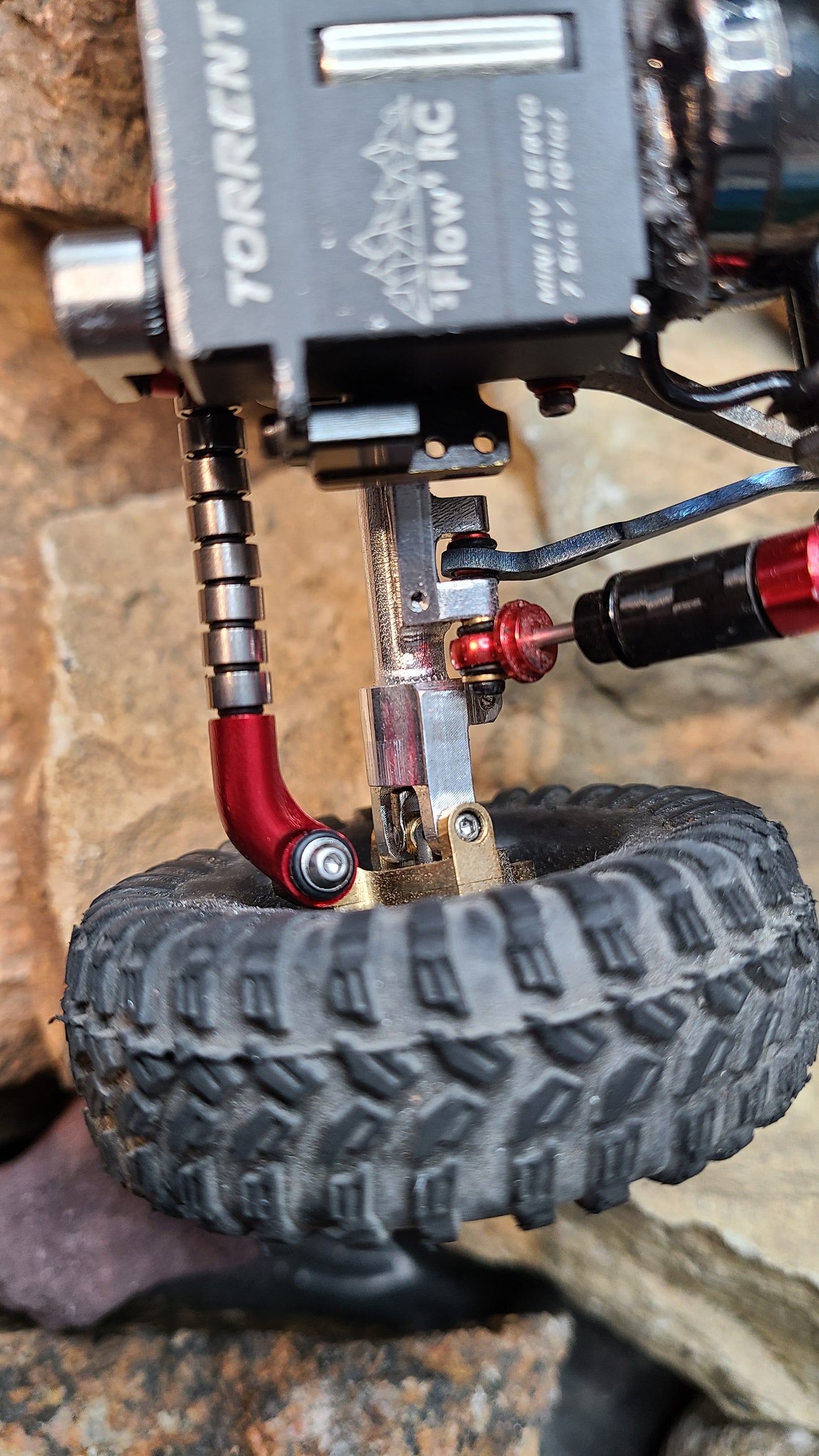

New V2 Offset rod ends(7075 Aluminum)and V2 Pivot Balls(Stainless Steel) designed in house, give added strength, clearance and style to the R.B.S.L. !!! There are 3 sizes of pivot balls that will all fit the same rod end. M2.5, M2, M1.4. These are small on one side and bigger on the other, when installed correctly, the rod ends will never come off! This R.B.S.L. for the Hardpark Axles comes with M2 pivot balls for the Low Blow Knuckles, M2 pivot ball for servo horn and one extra M1.4 pivot ball for your servo horn if it requires m1.4 hardware. The Drag link comes  equipped for standard servo trays and with an Extra drag tube if using the BOA mount. Simply swap the drag tubes on the drag link for either length. The M1.4 Pivot ball has the added bonus of being inset so the the screw head is flush with the pivot ball lip. Keeps the screws short and gives clearance away from the diff cover. **Having a taller profile than Hardparks Titanium steeering link by a couple mm's, you will lose a few degrees of max caster angle but with a few modifications it can clear**

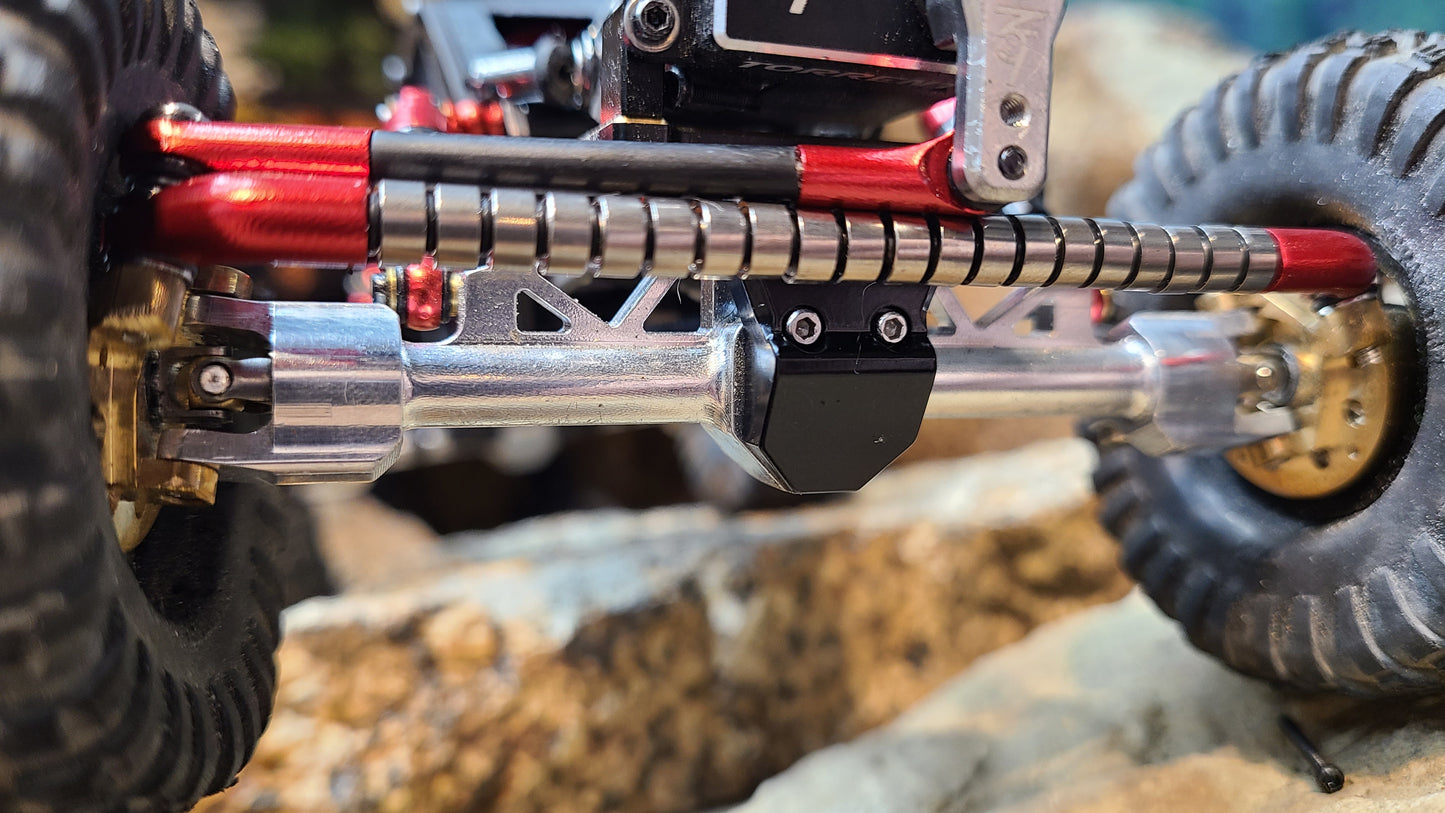

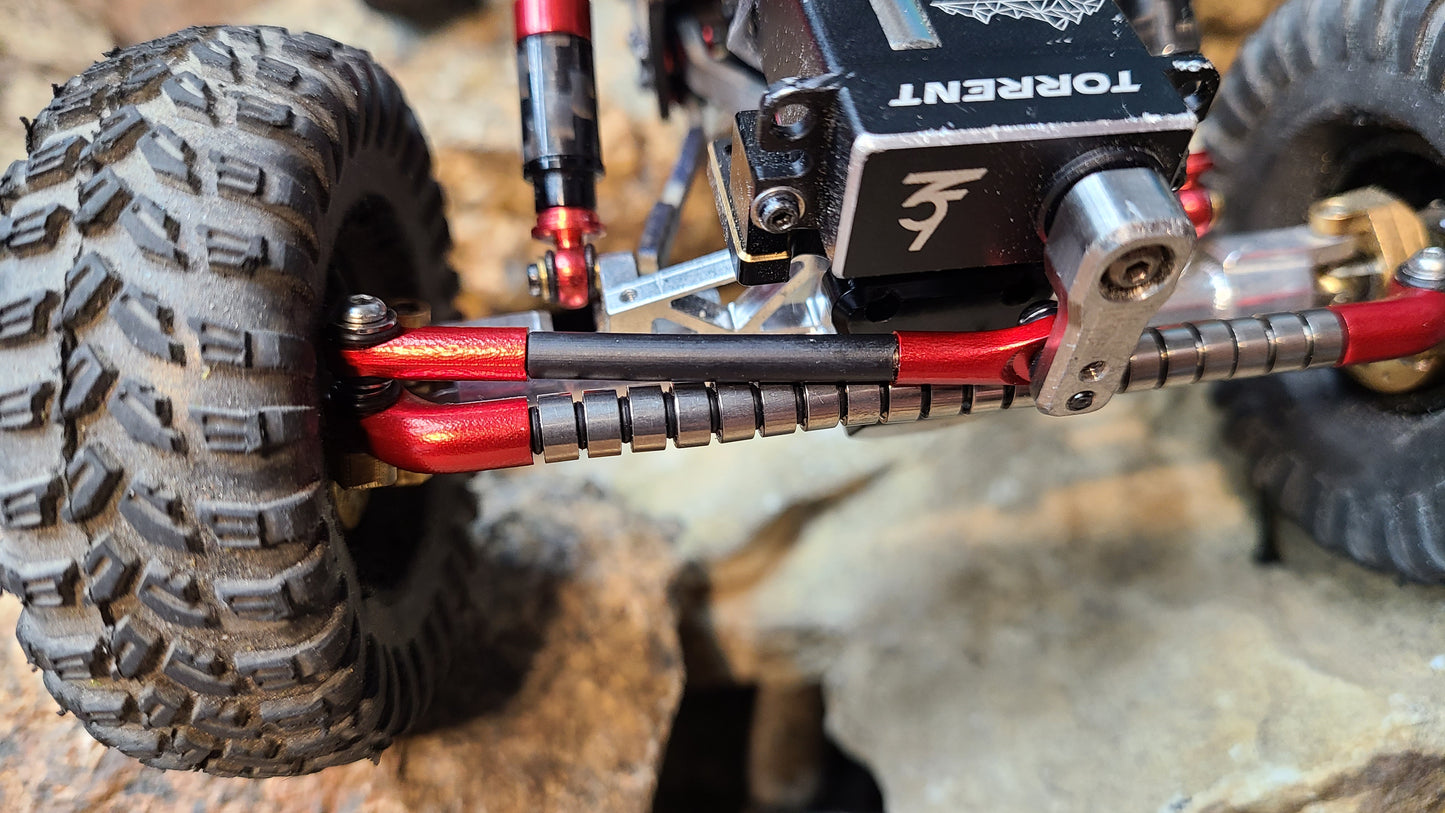

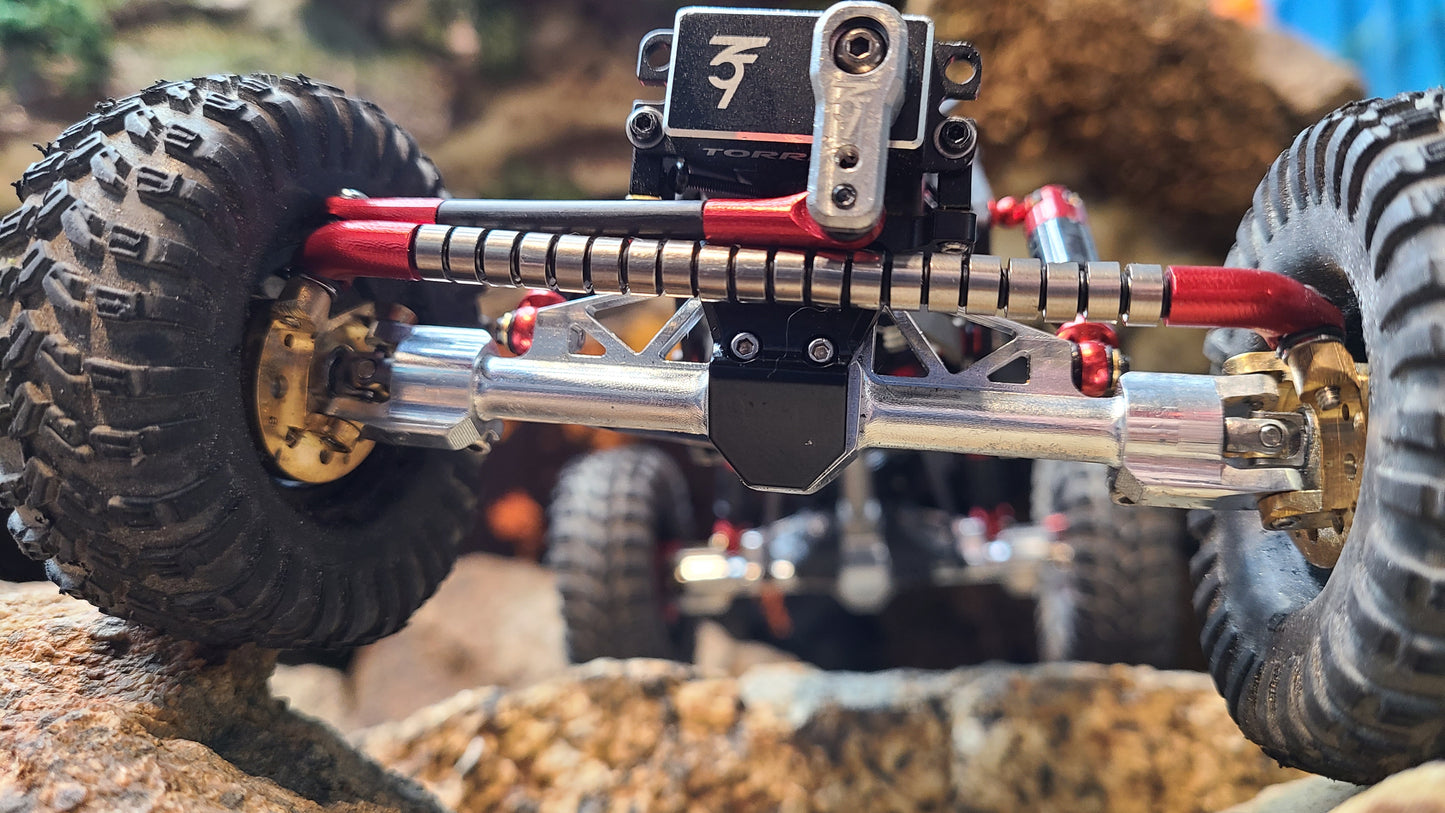

The Flow Skid No Plate diff cover(pictured) fits the Hardpark Axles and is recommended over the delrin plate Flow Skid,  as adjusting the caster angle back, the Delrin plate will have a big gap and get caught on rocks. The Flow Skid No plate still offers the same degree of rock sliding and adds 13grams.

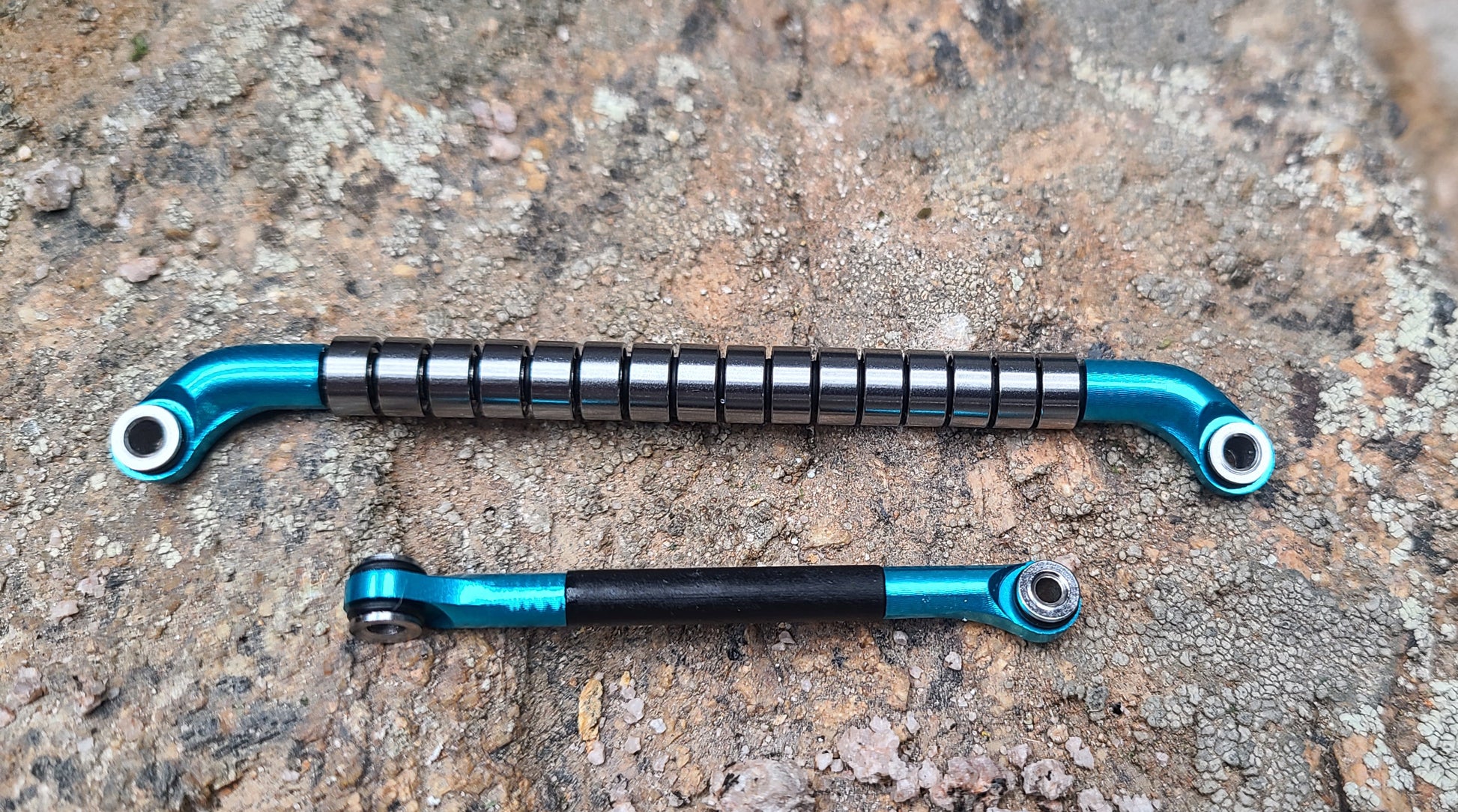

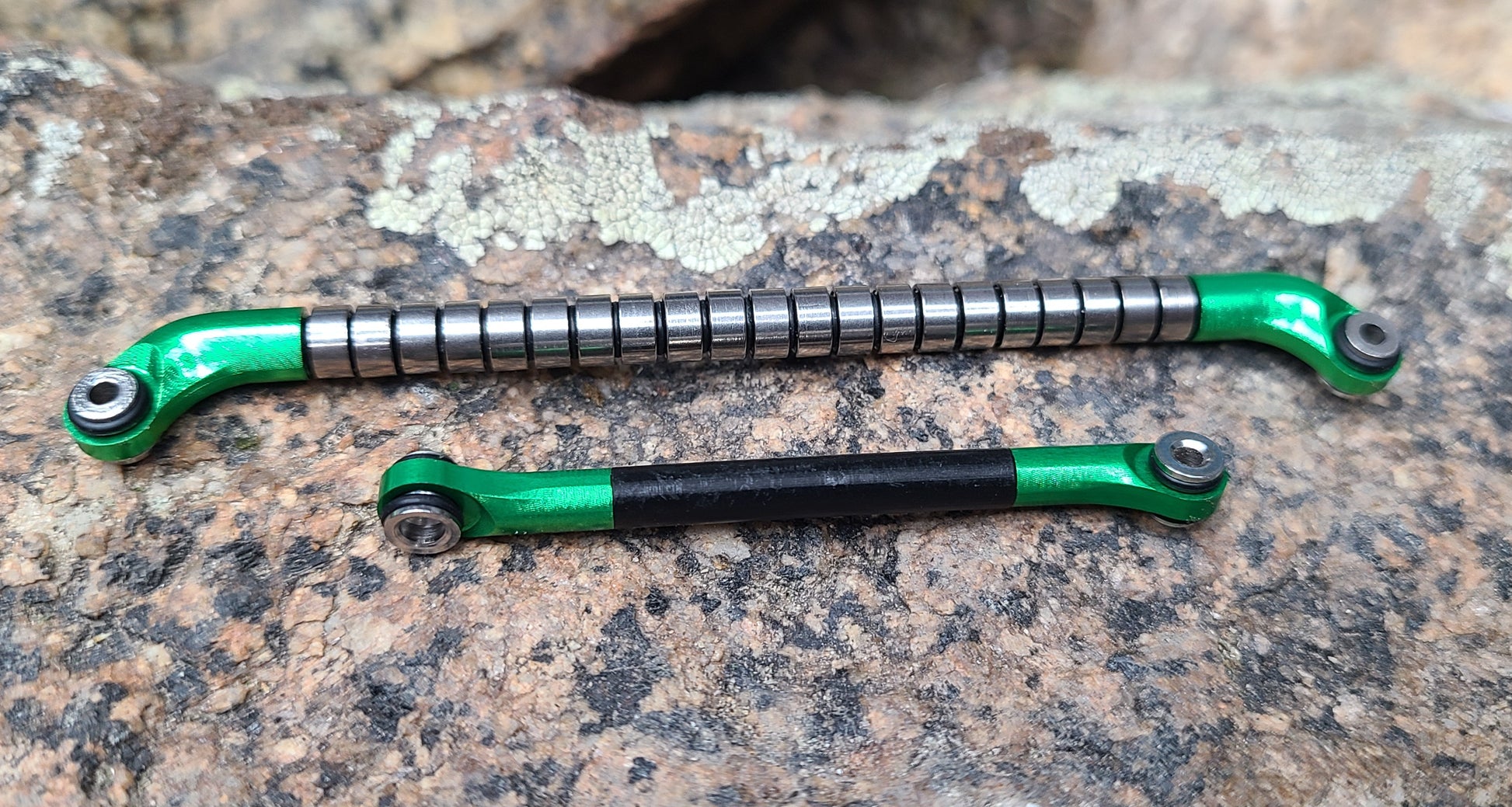

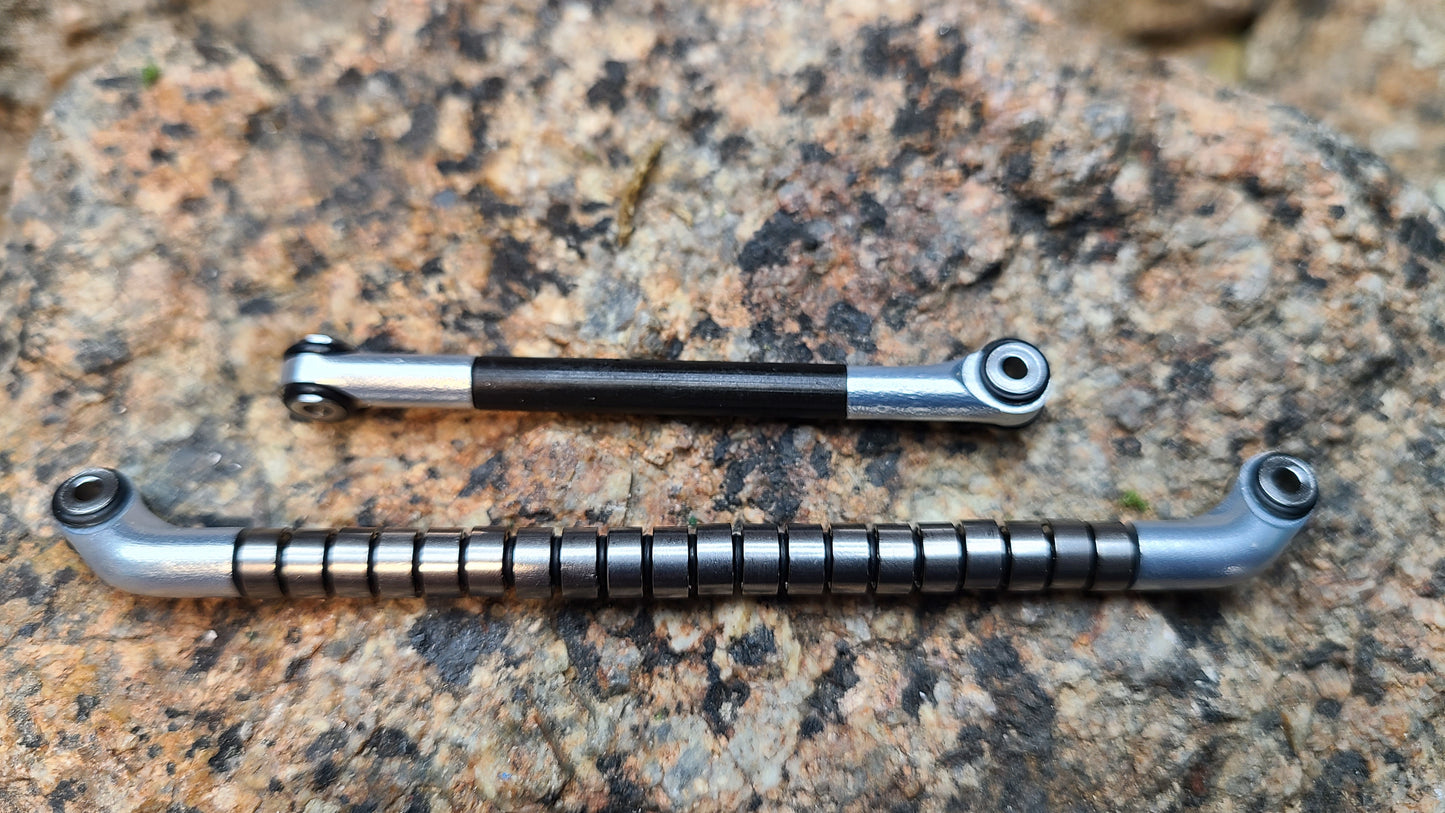

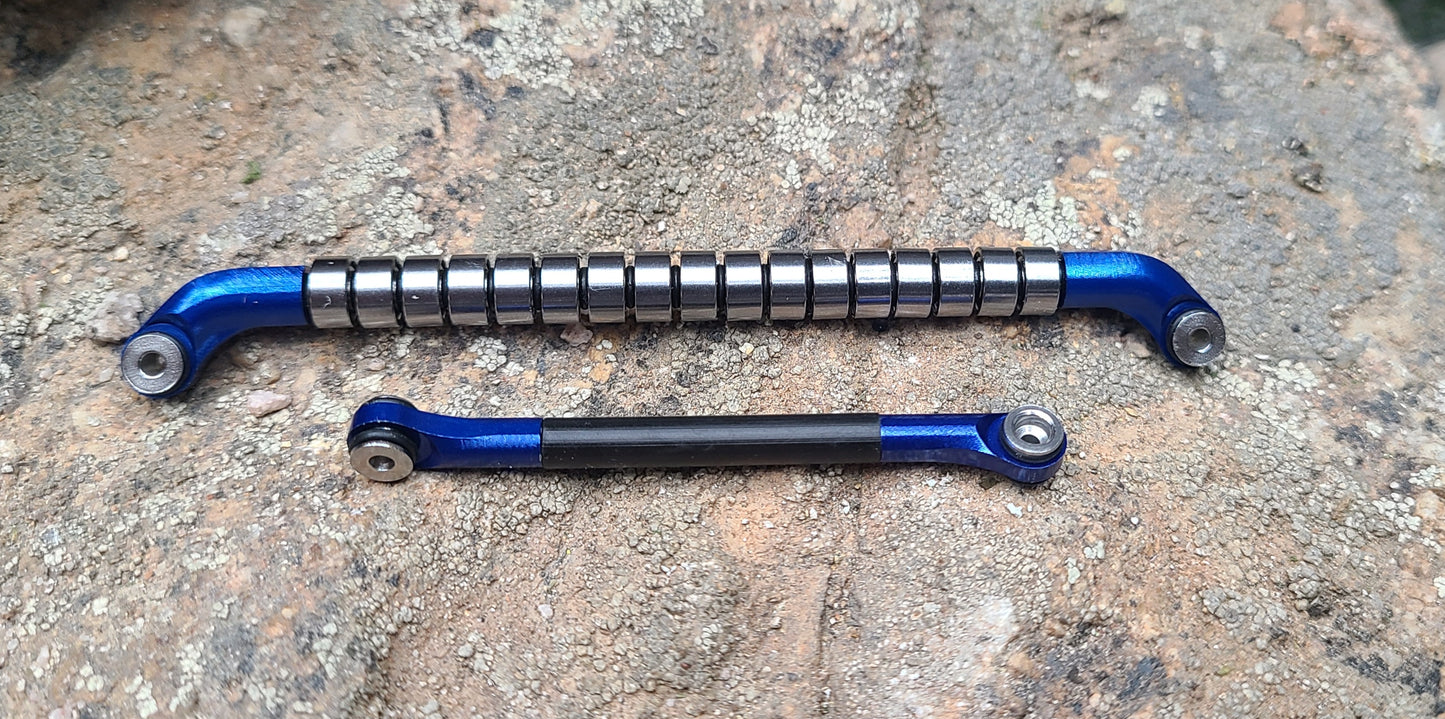

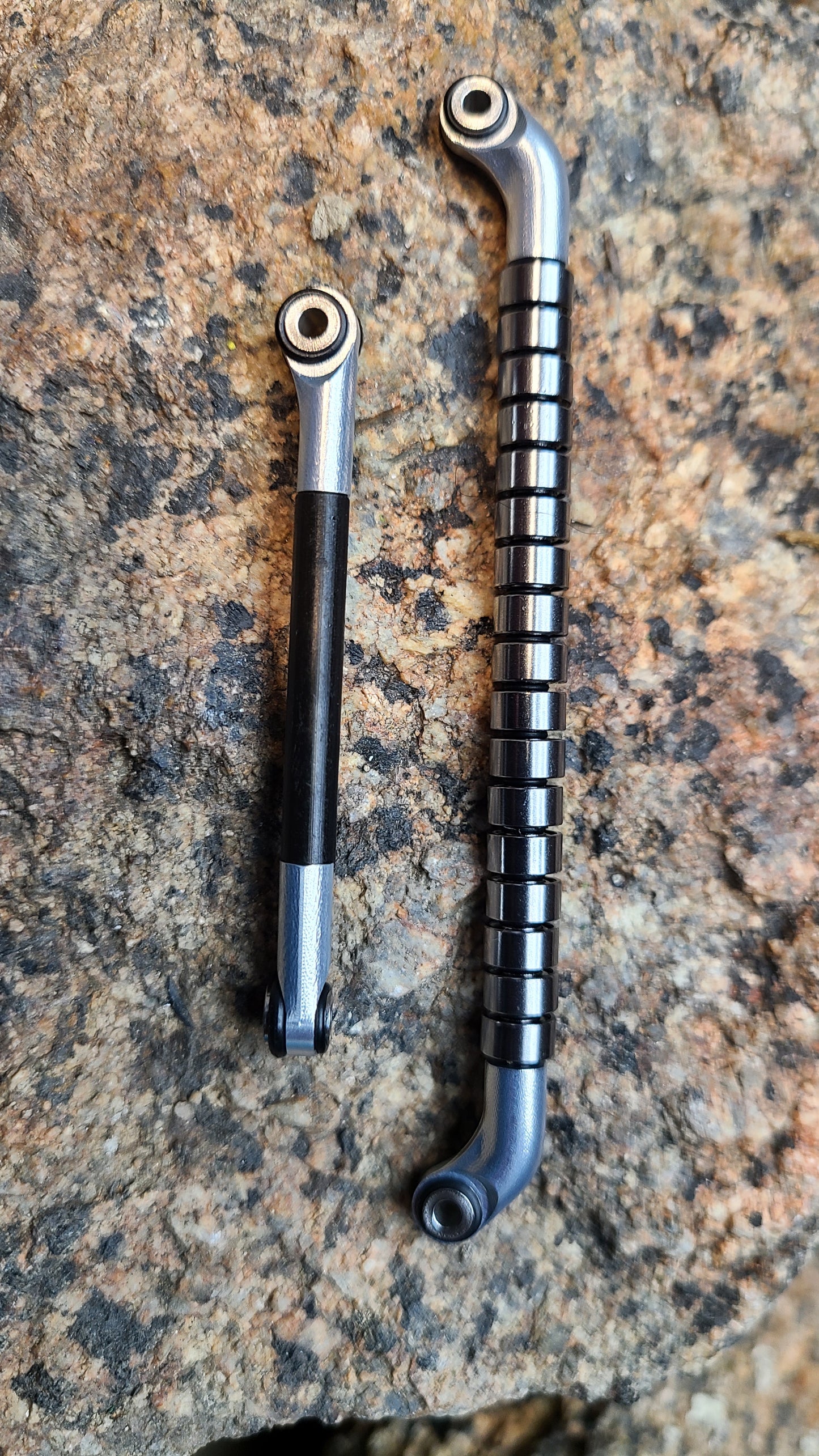

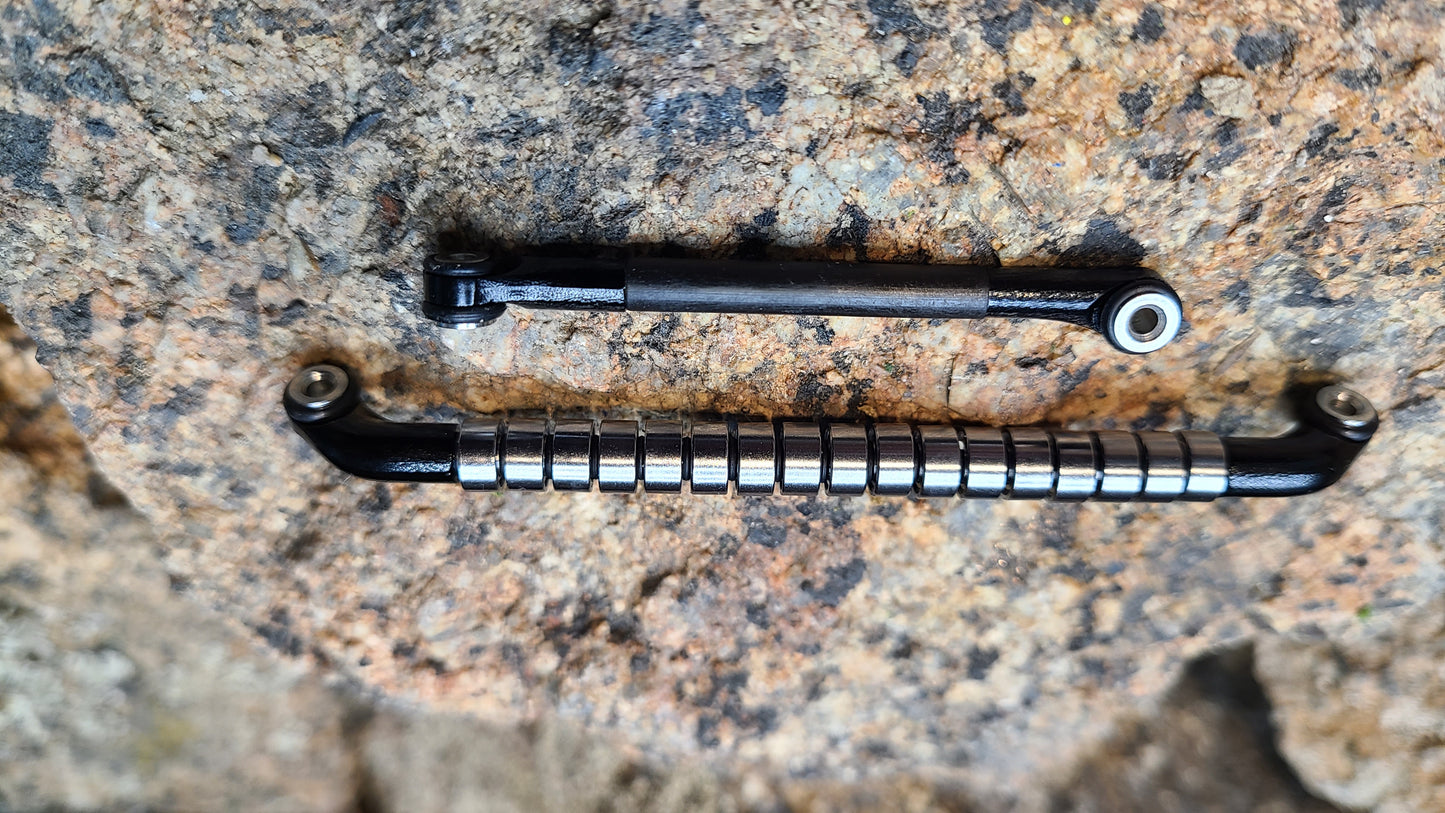

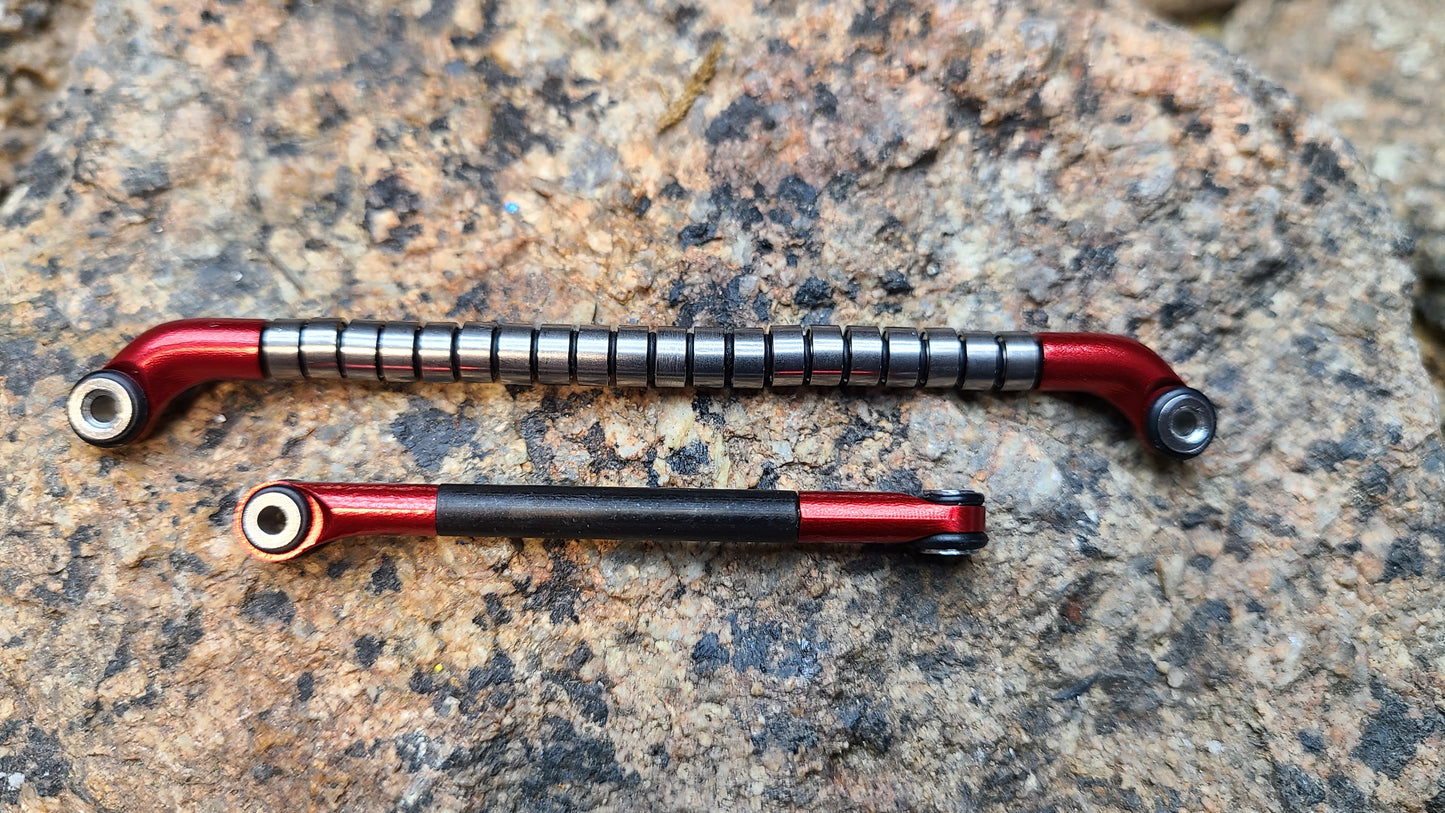

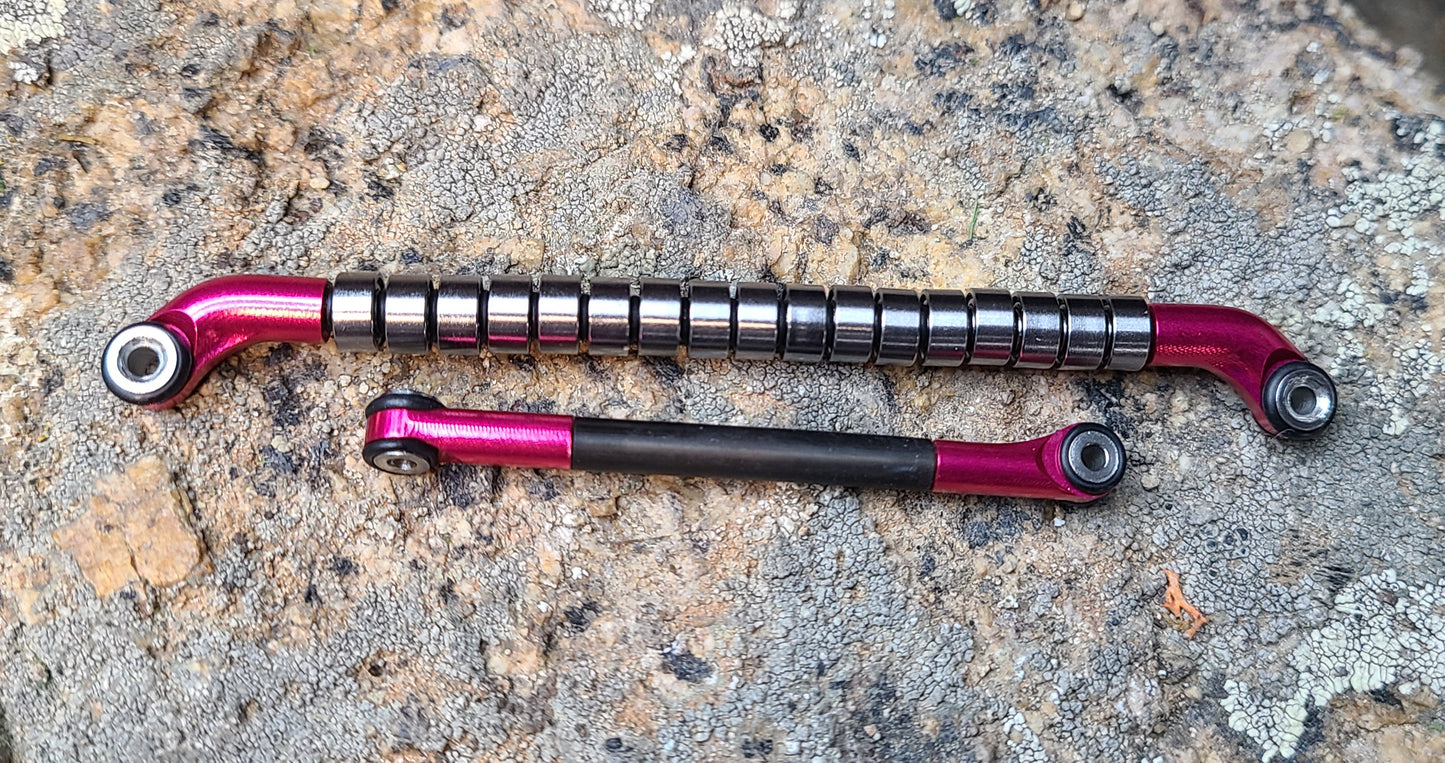

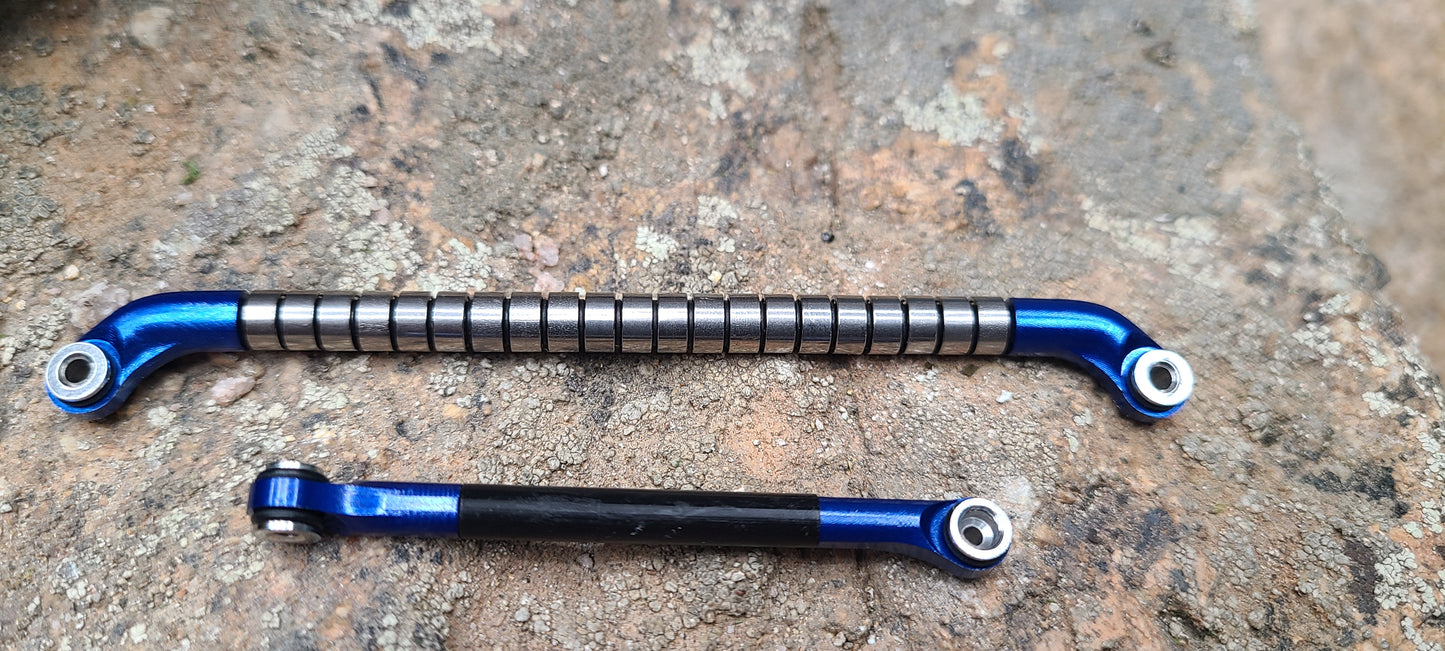

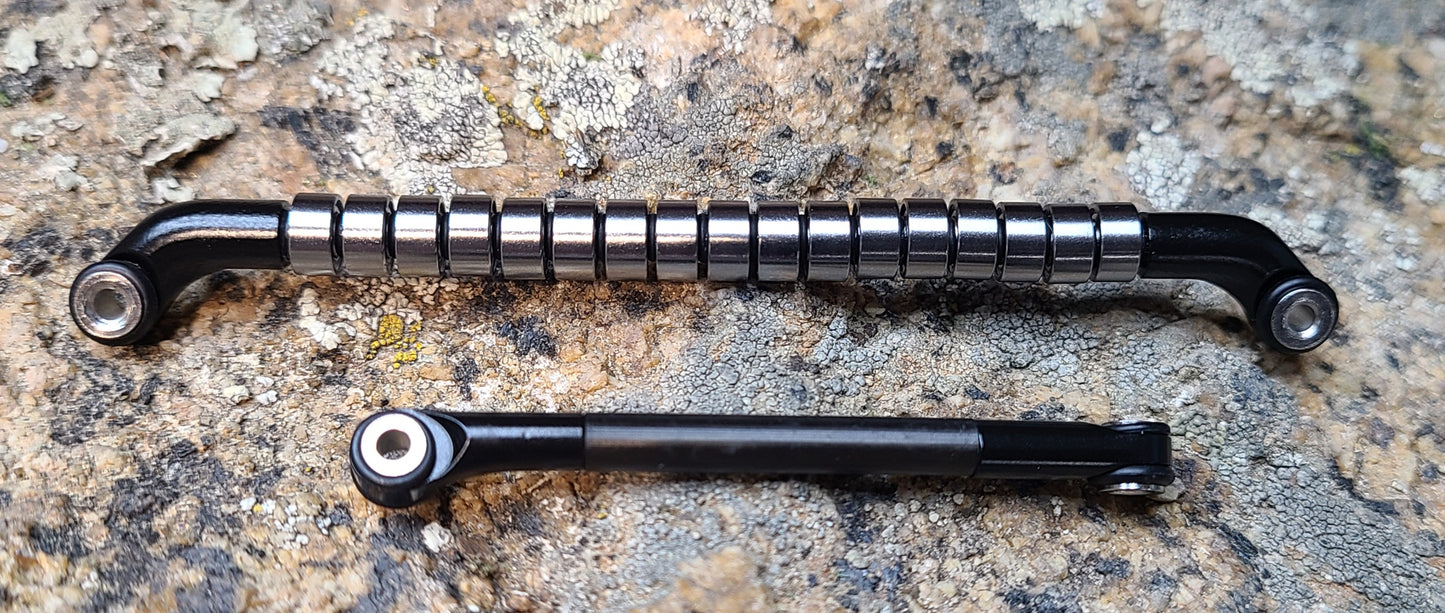

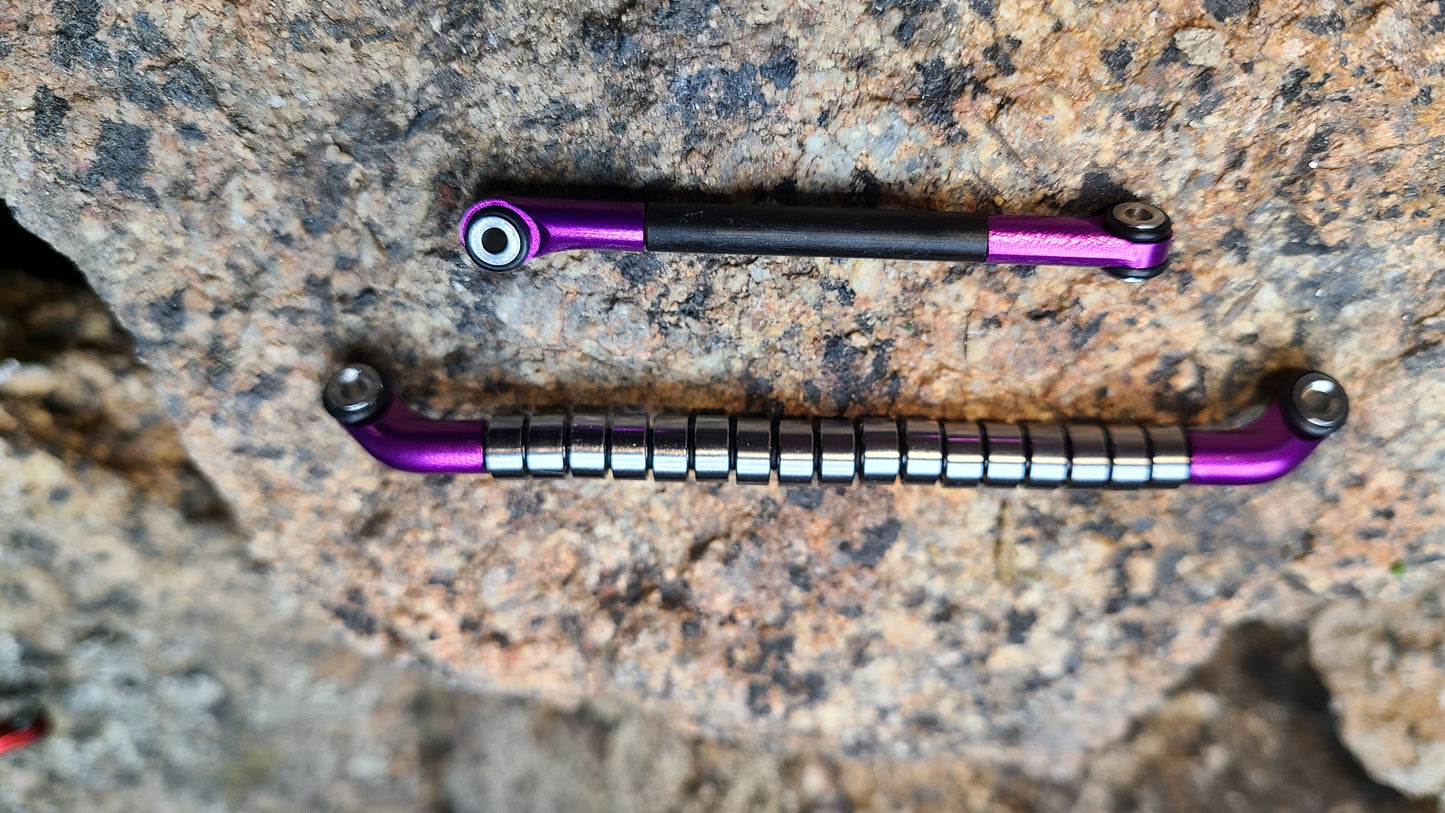

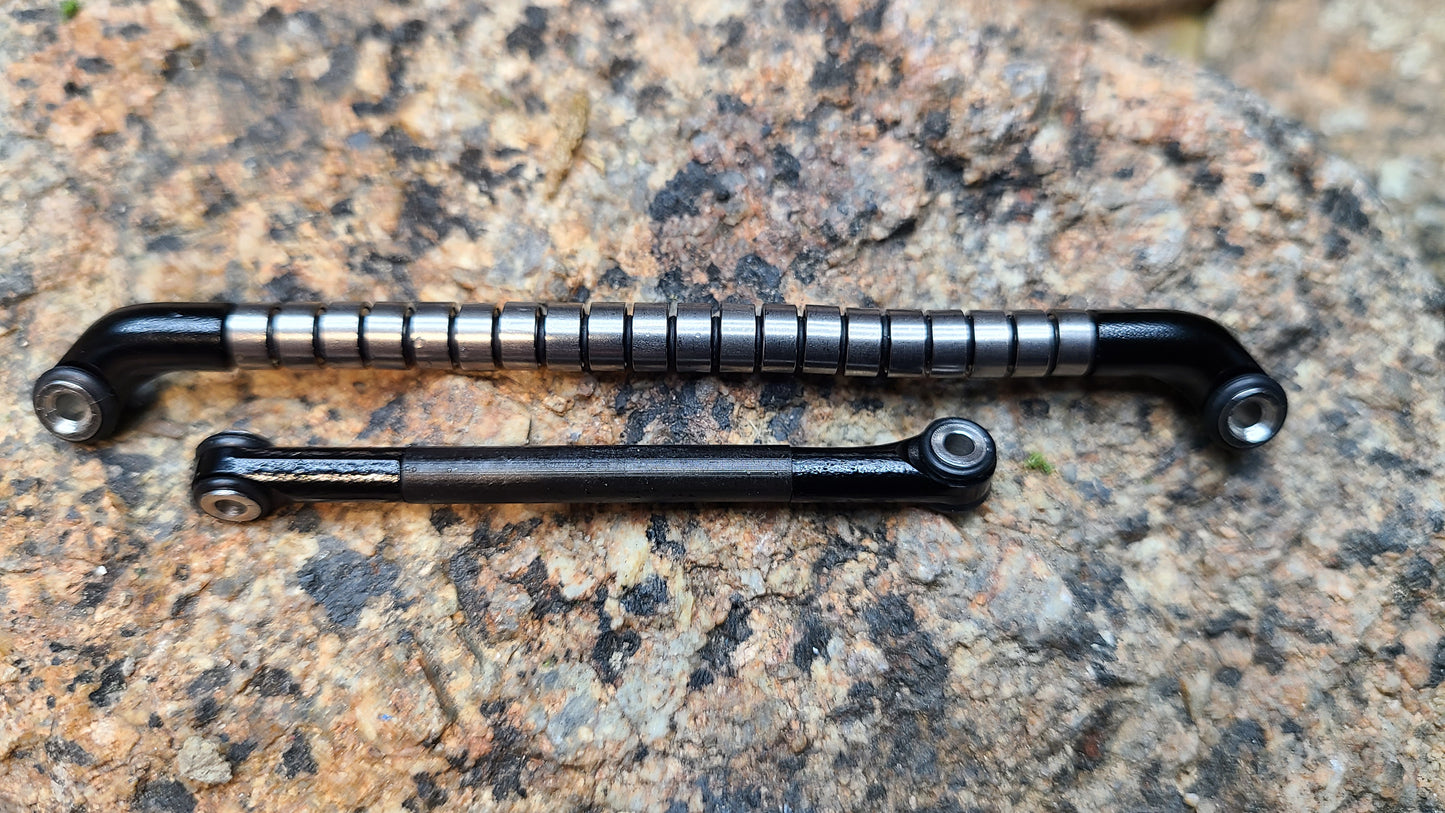

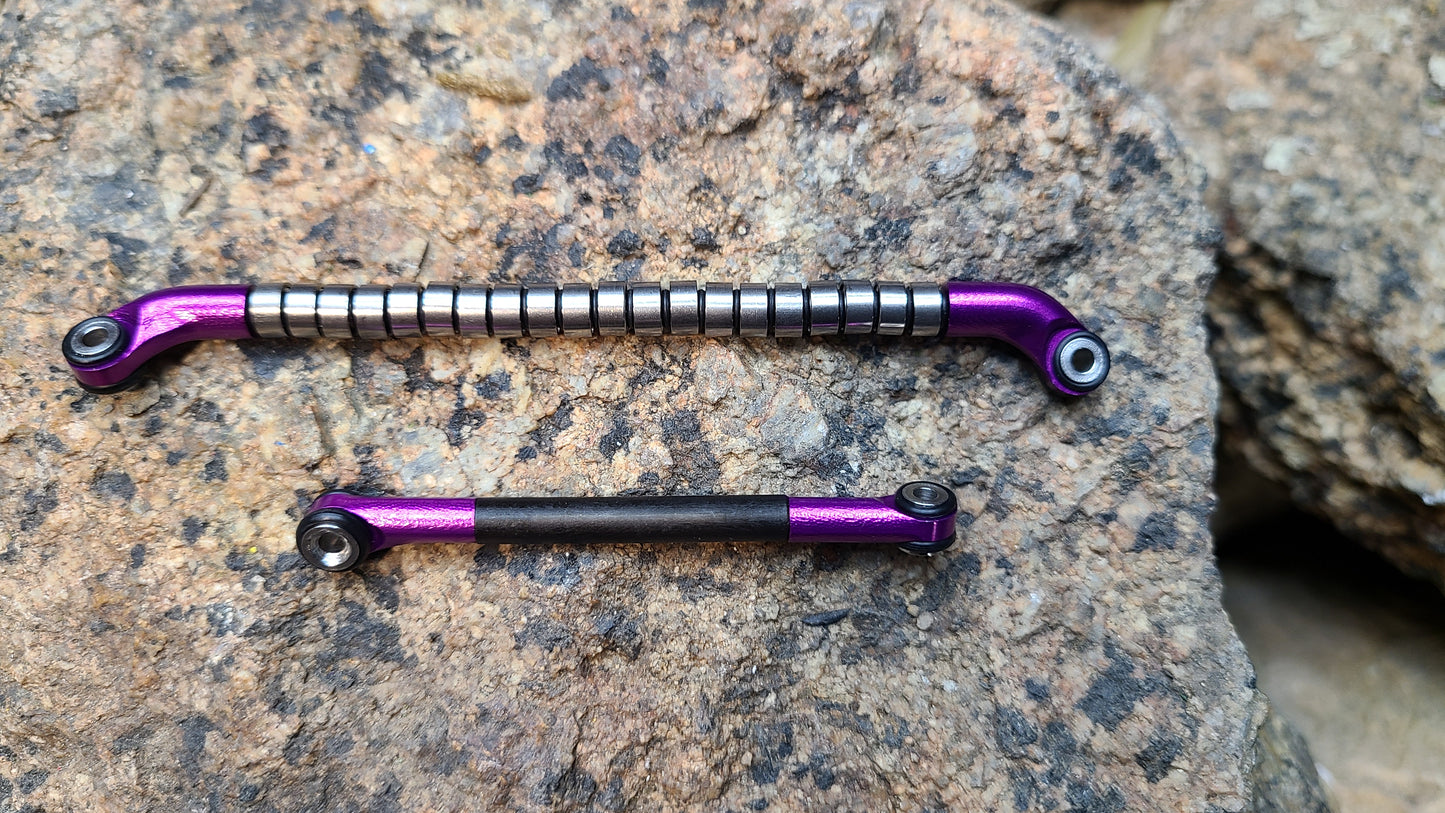

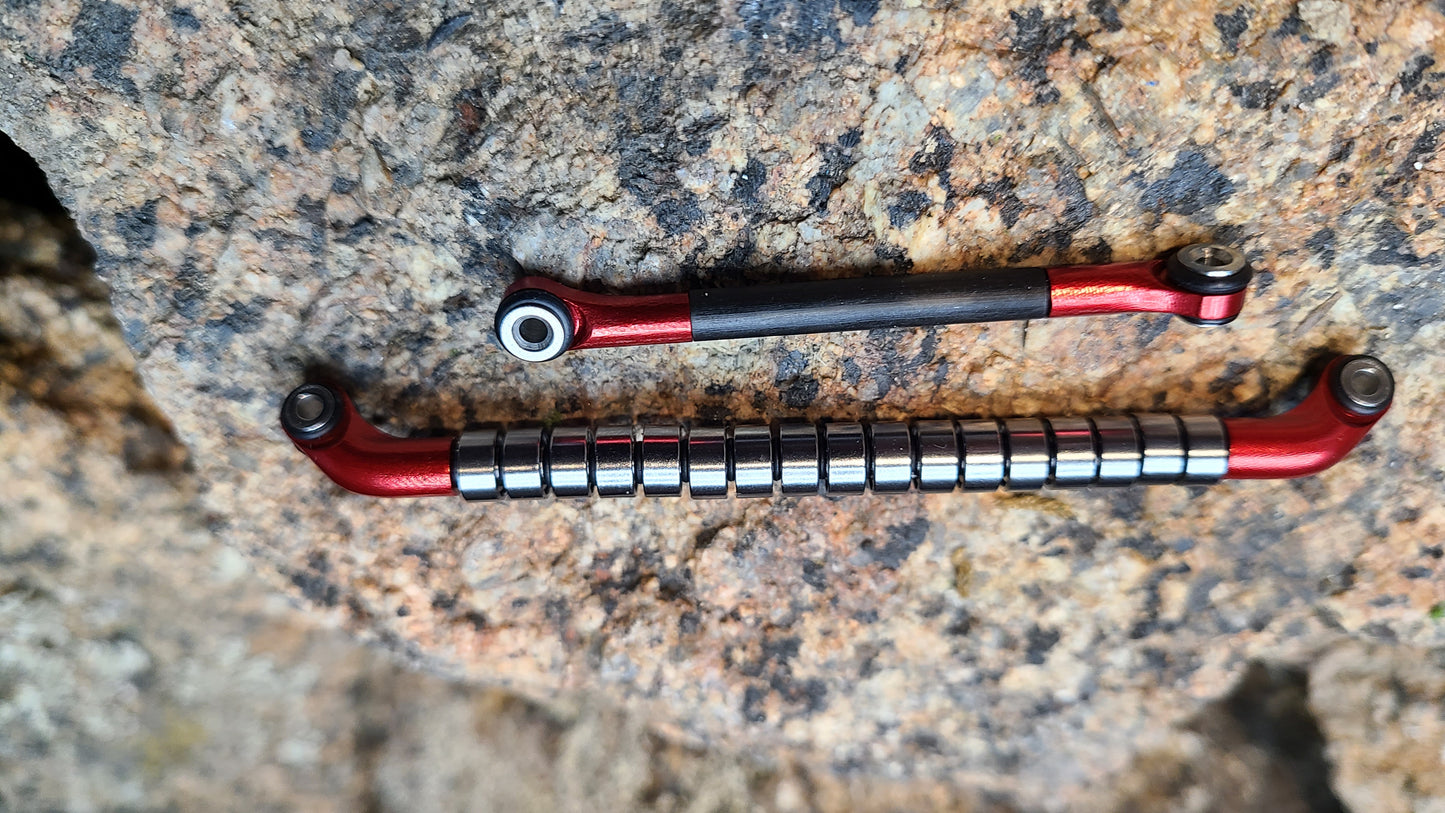

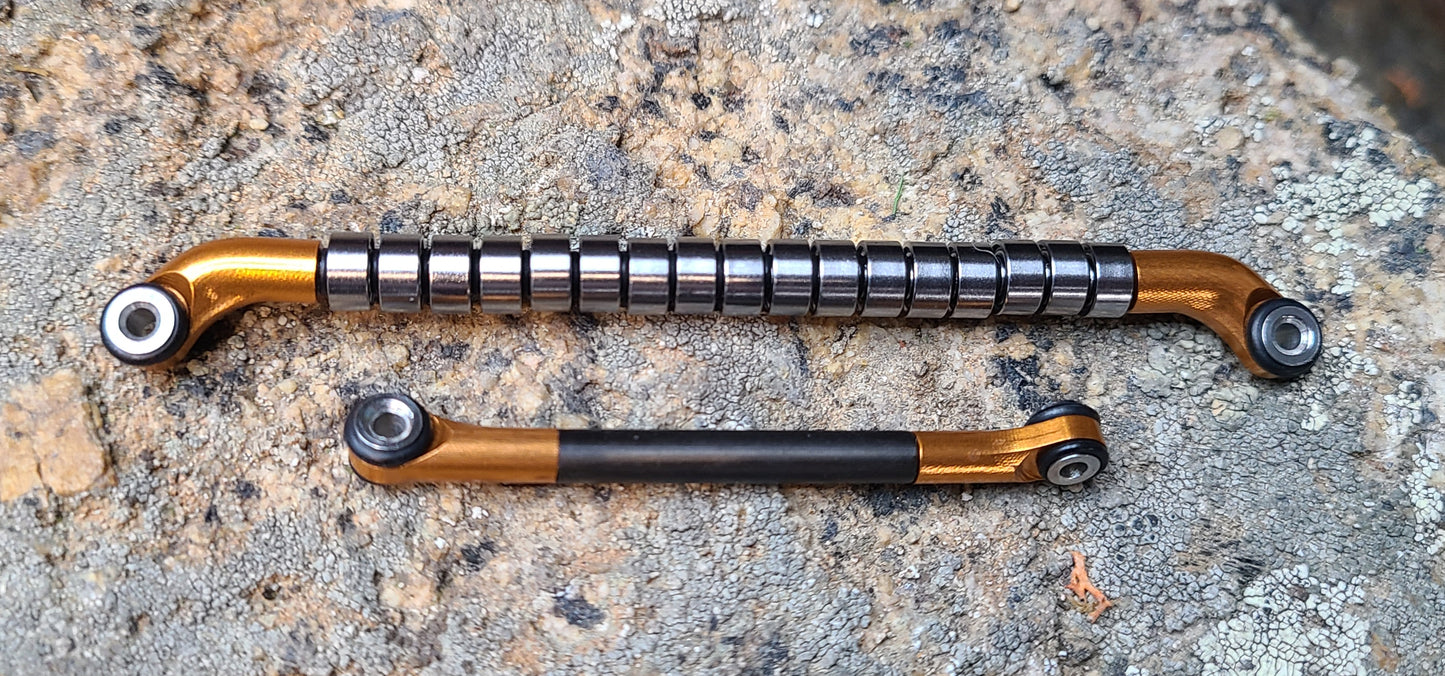

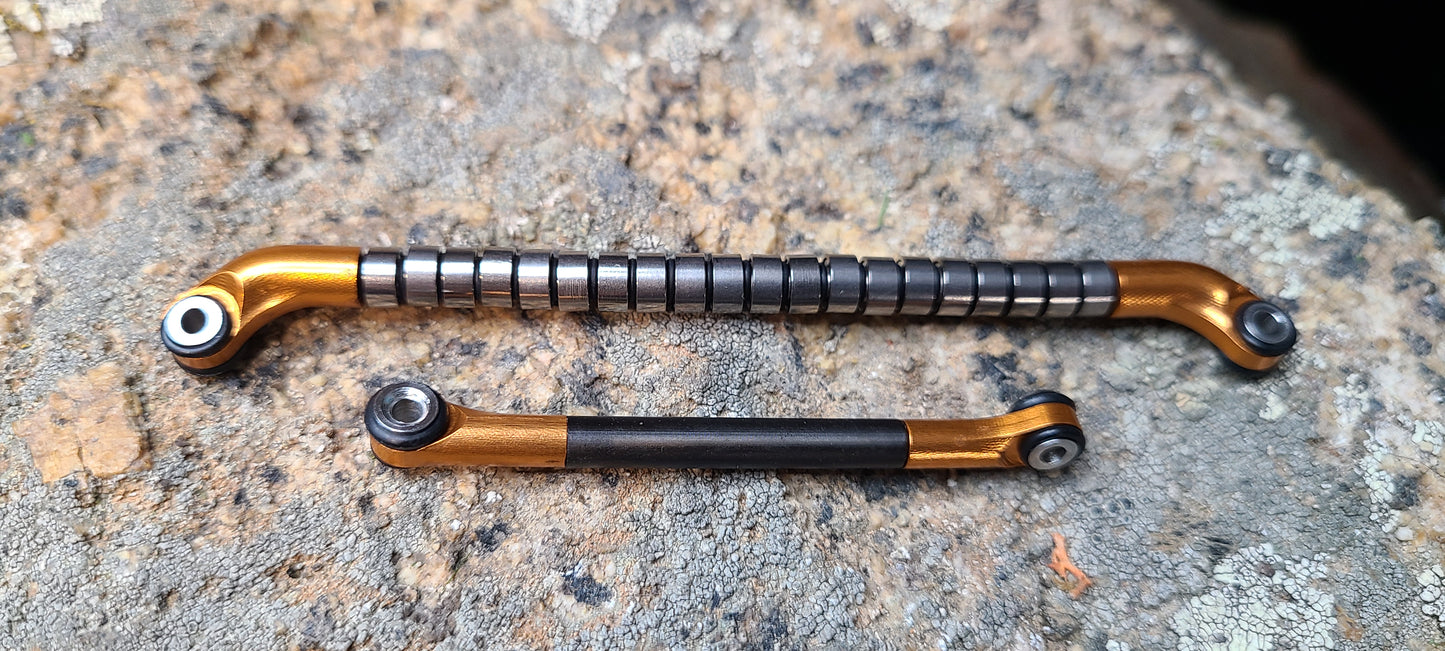

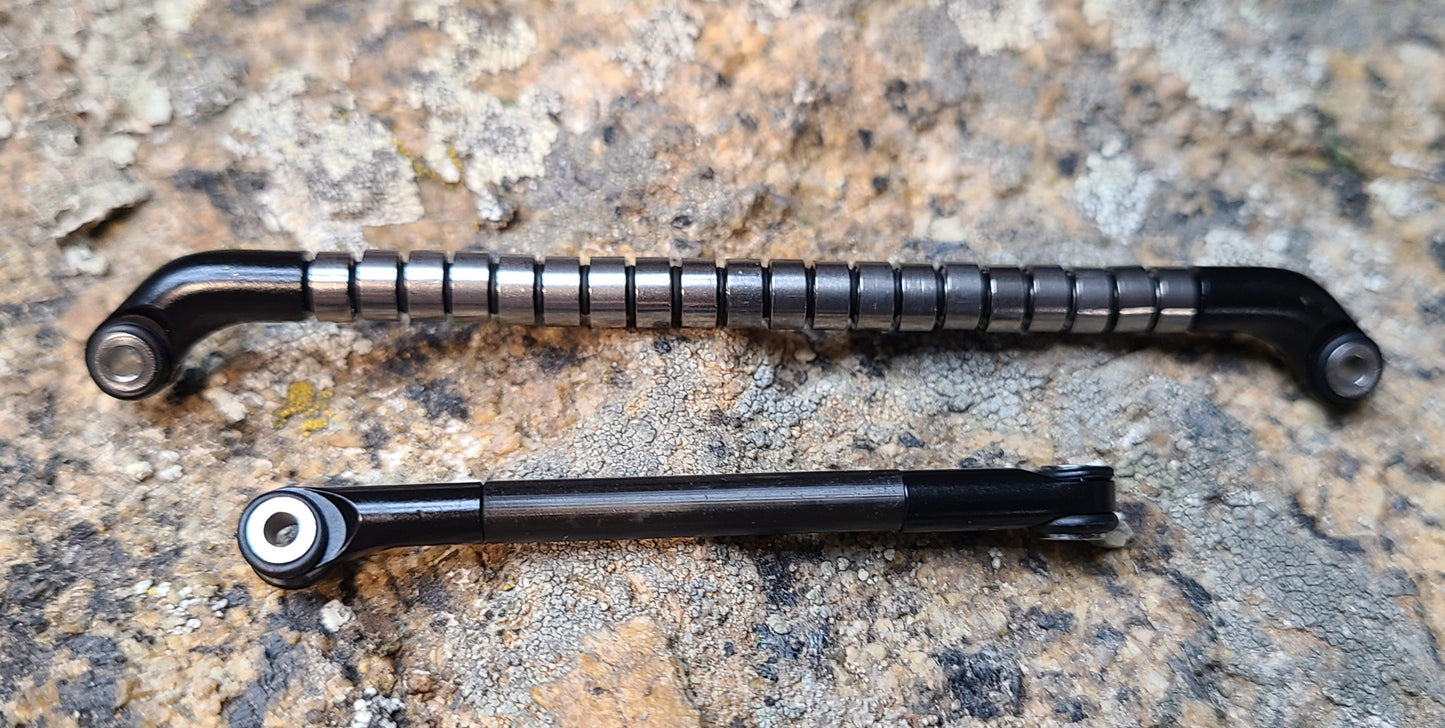

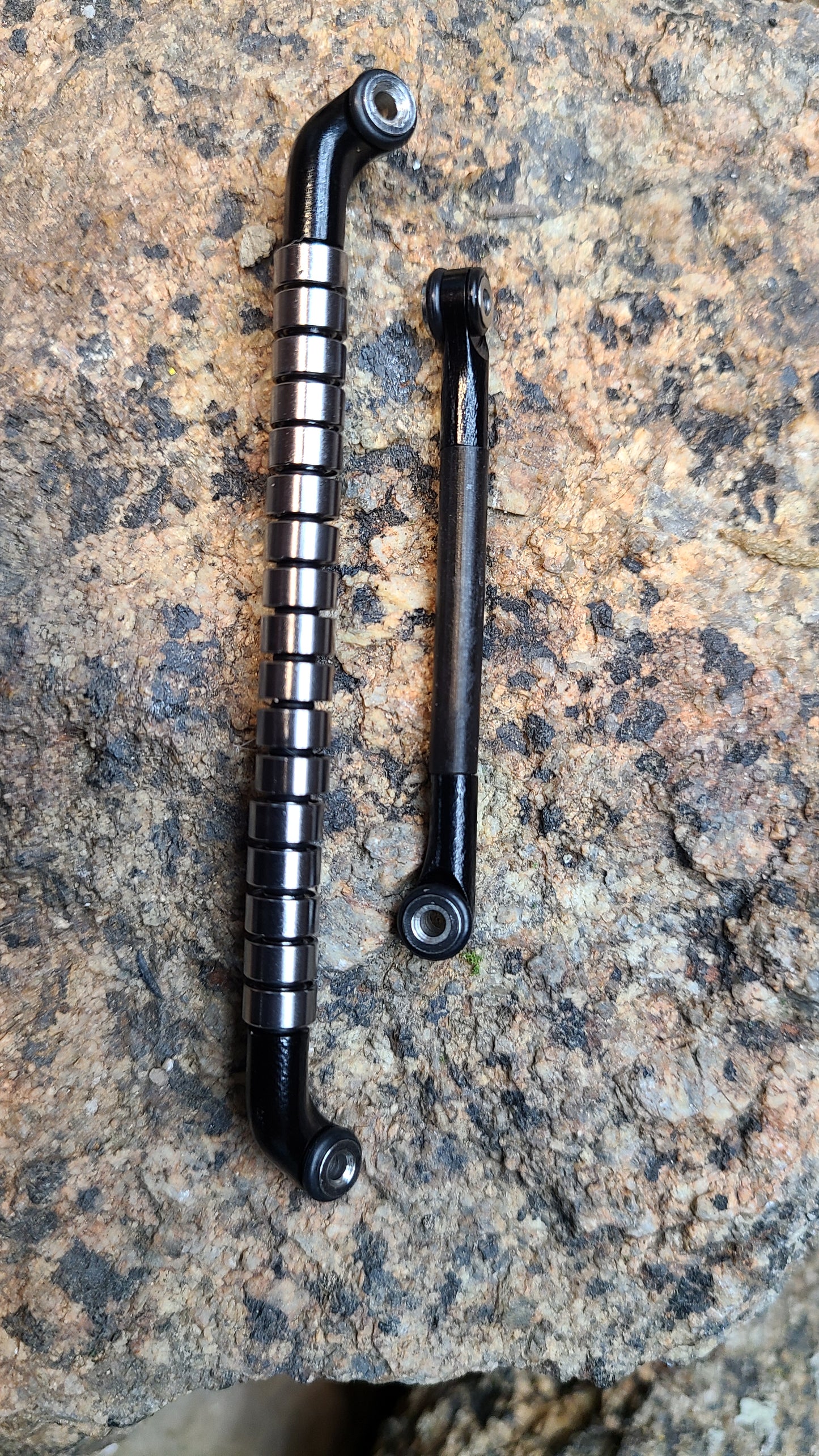

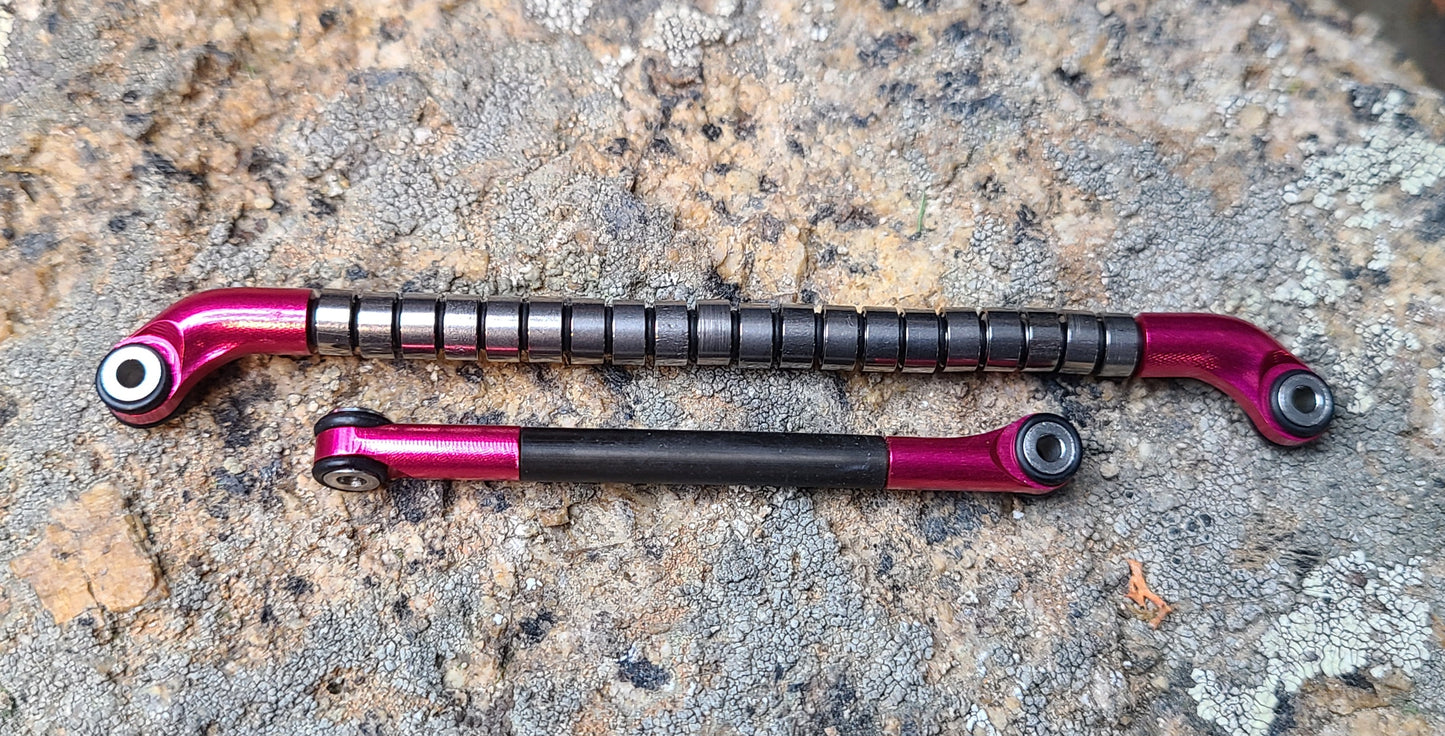

Step away from the square edge steering links and step towards the R.B.S.L. for your Hardpark RC Axles This steering link has 20 5mm or 17 6mm sealed and oiled bearings! This dramatically reduces the risk of hang-up from a square edged steering links. Now the R.B.S.L allows you to slide over the hang ups giving you that flow in your ride. Hardware is included.

 Added benefits

Zero drag steering link- No edges to get caught on here. 17/20 sealed and oiled bearings on the 5mm give no resistance to glancing edges

Adjustable drag link - no more offsetting of your steering rate from off center servos

 Adjustable Toe-In / Toe -Out - most aftermarket parts aren't too off but some are. Now you can adjust Toe angle if needed. They are 4 full turns in either directions on the tie rod ends for a few degrees of adjustment.

 For rock crawling Toe-out gives you a better initial turn in on corner entry but will make the truck unstable under acceleration(faster trucks) on the straights and on bumpy tracks

 Toe-in will reduce steering when entering a corner but improves steering response on corner exit under acceleration(faster trucks)

A slight 1° toe out would be good for our slow crawlers.

 But have fun trying the different setups. Every truck setup is different so one might work better for your terrain or setup.

Added weight - R.B.S.L 5mm - 11 grams

R.B.S.L. 6mm -13 grams

R.B.S.L 5mm Black Brass -15  grams

R.B.S.L 6mm Black Brass- 17 grams

Flow Your Ride!

R.B.S.L. comes with a 6 month warranty
