Flow Bare Bones Brace for Losi Micro-B

Time to lower your CG to the floor!

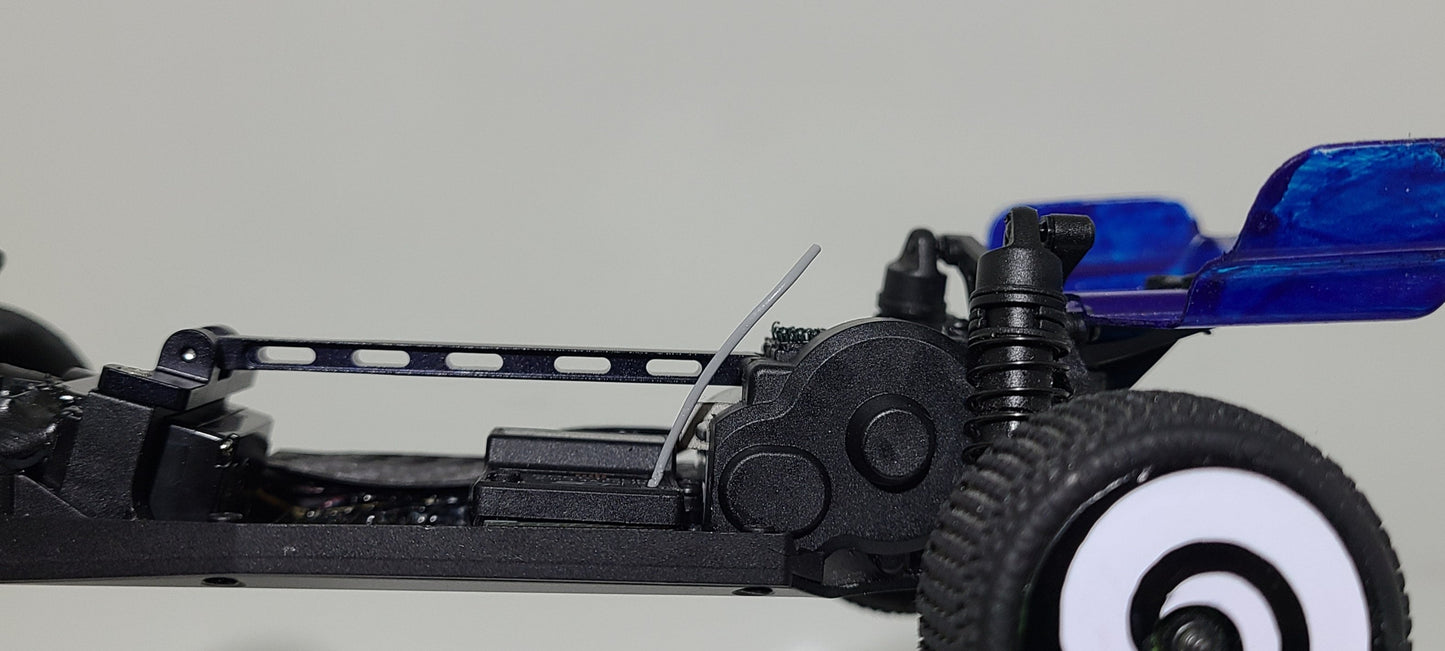

 The 3Flow9 RC Flow Bare Bones Brace helps you achieve that and more! Only weighing 3 grams of 7075 Aluminum for the Brace and mount! The Bare Bones brace provides great structural strength to the chassis to prevent flex and bending when getting full throttle and sending it on jumps!

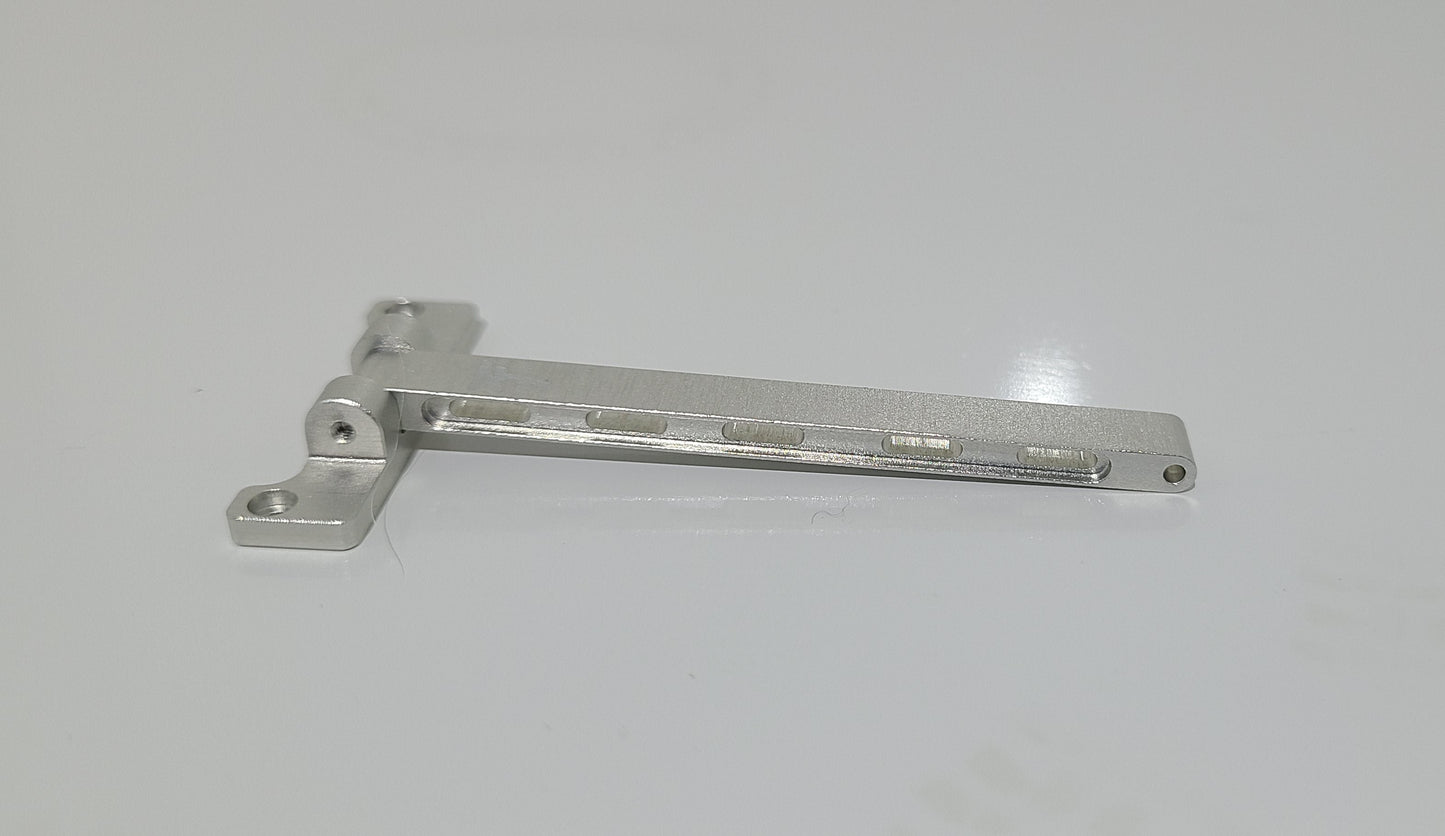

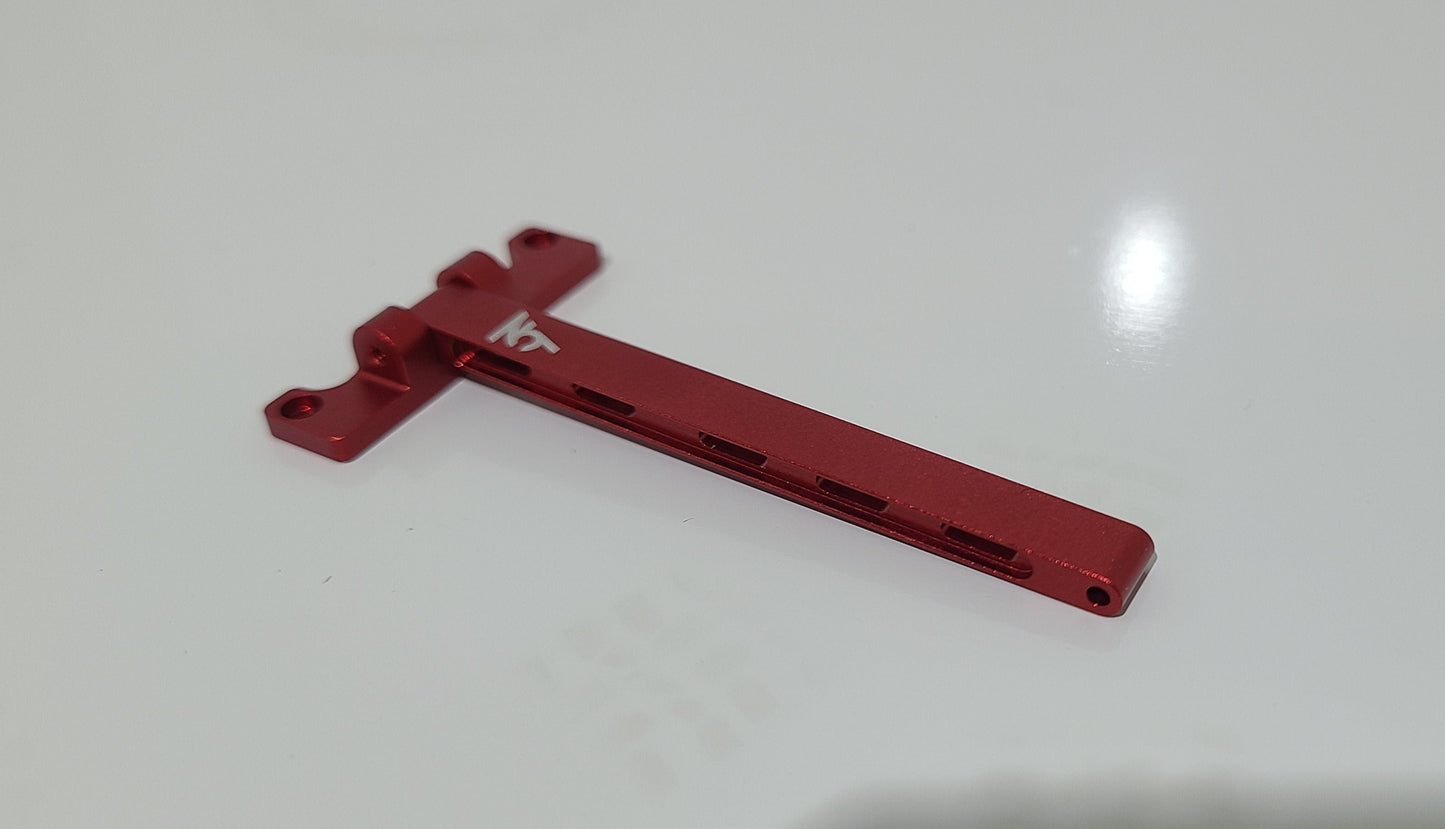

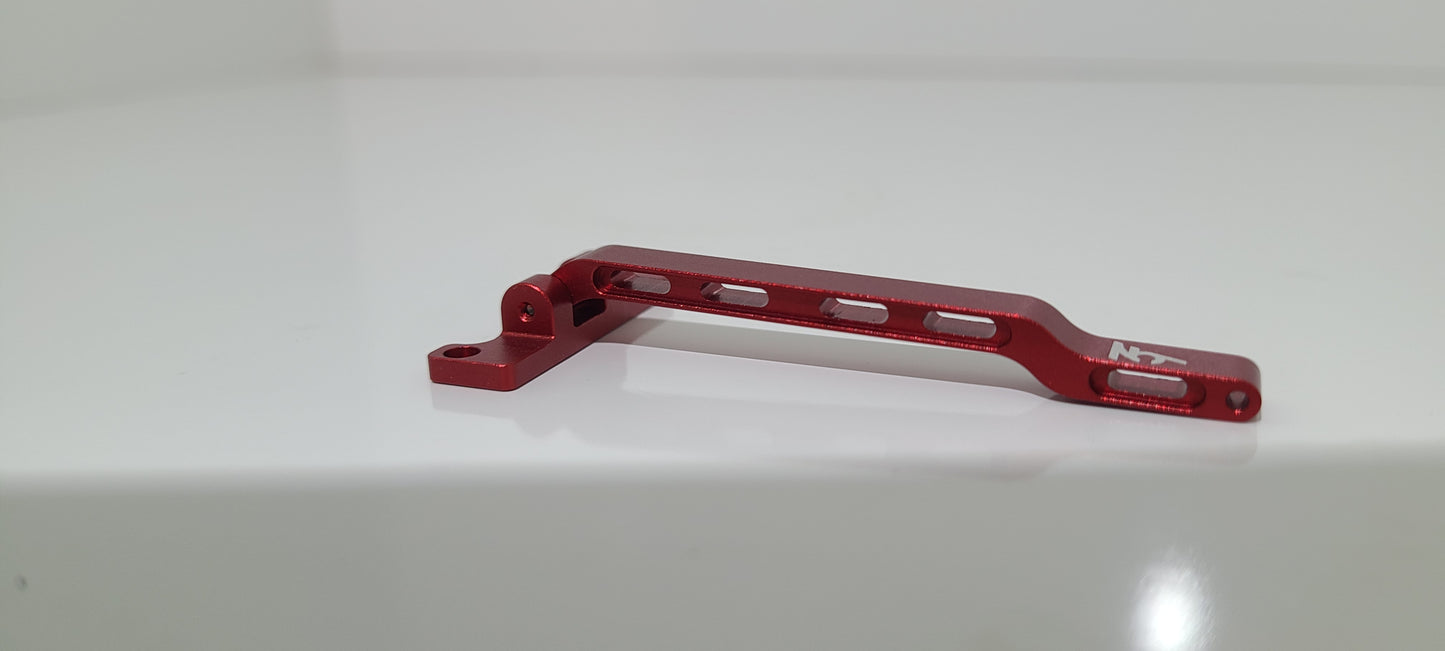

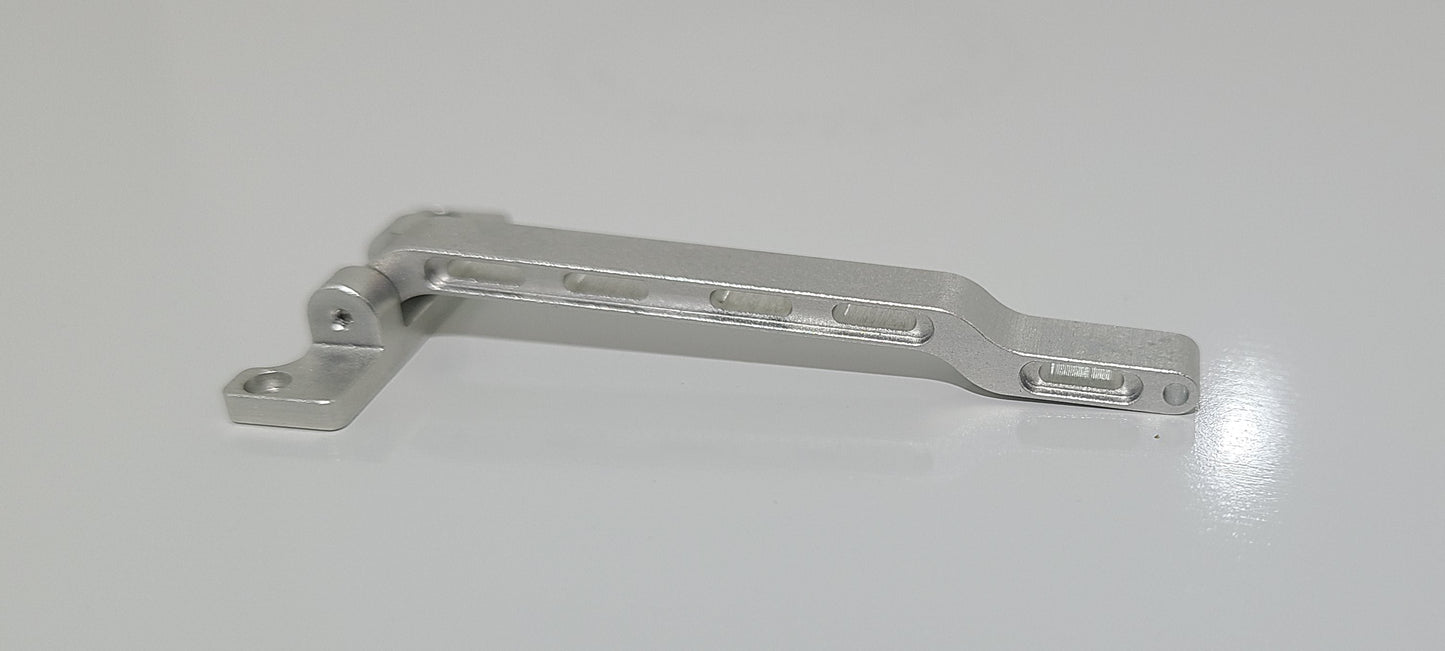

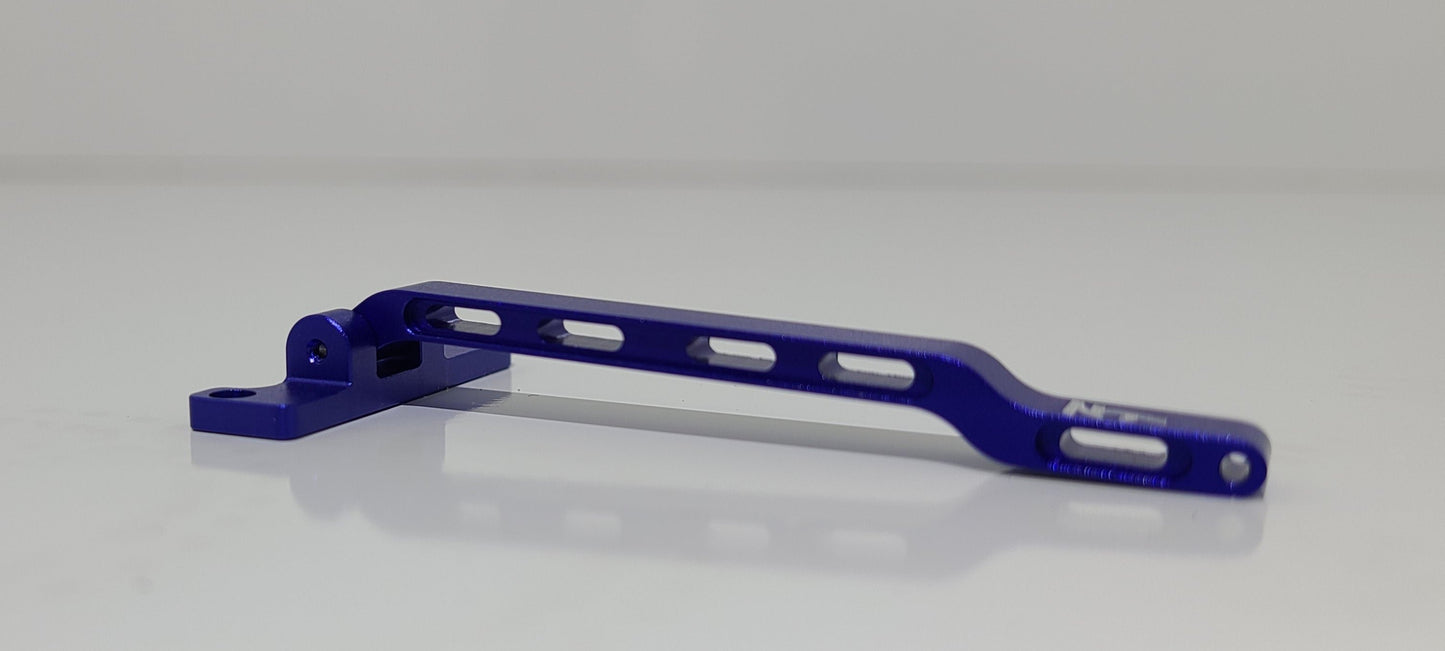

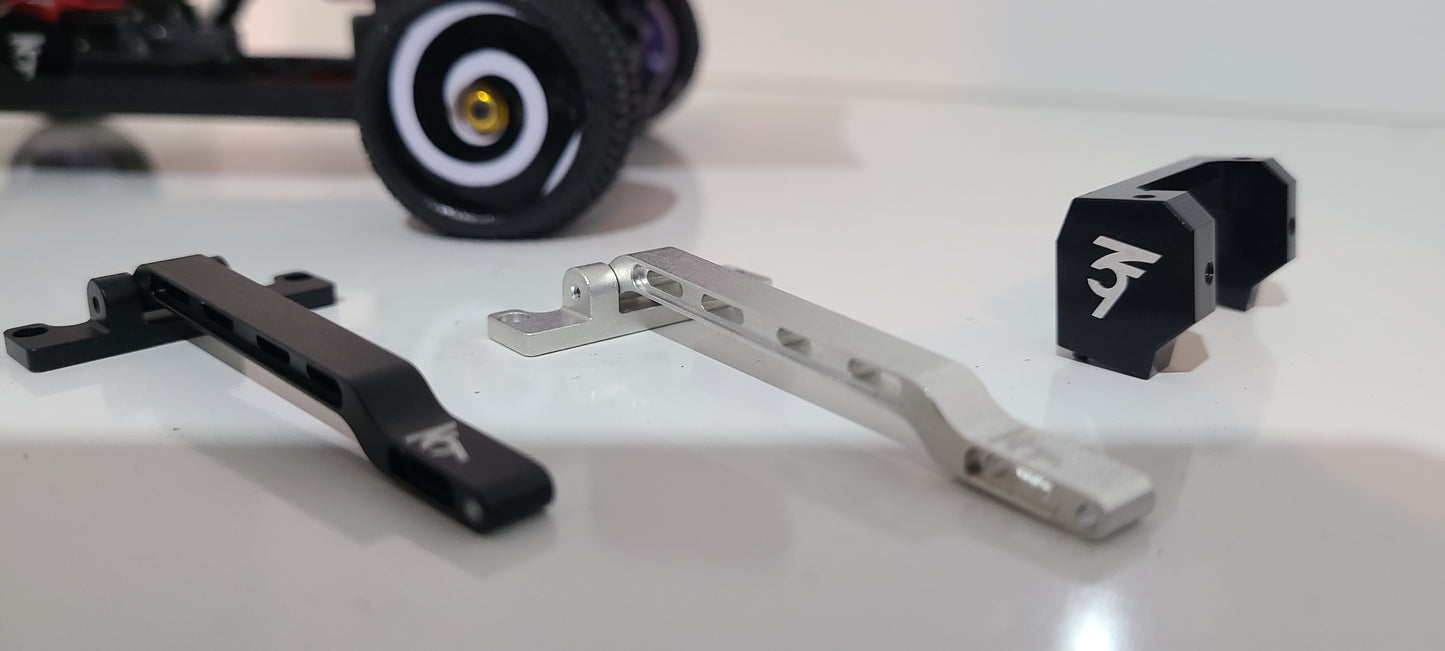

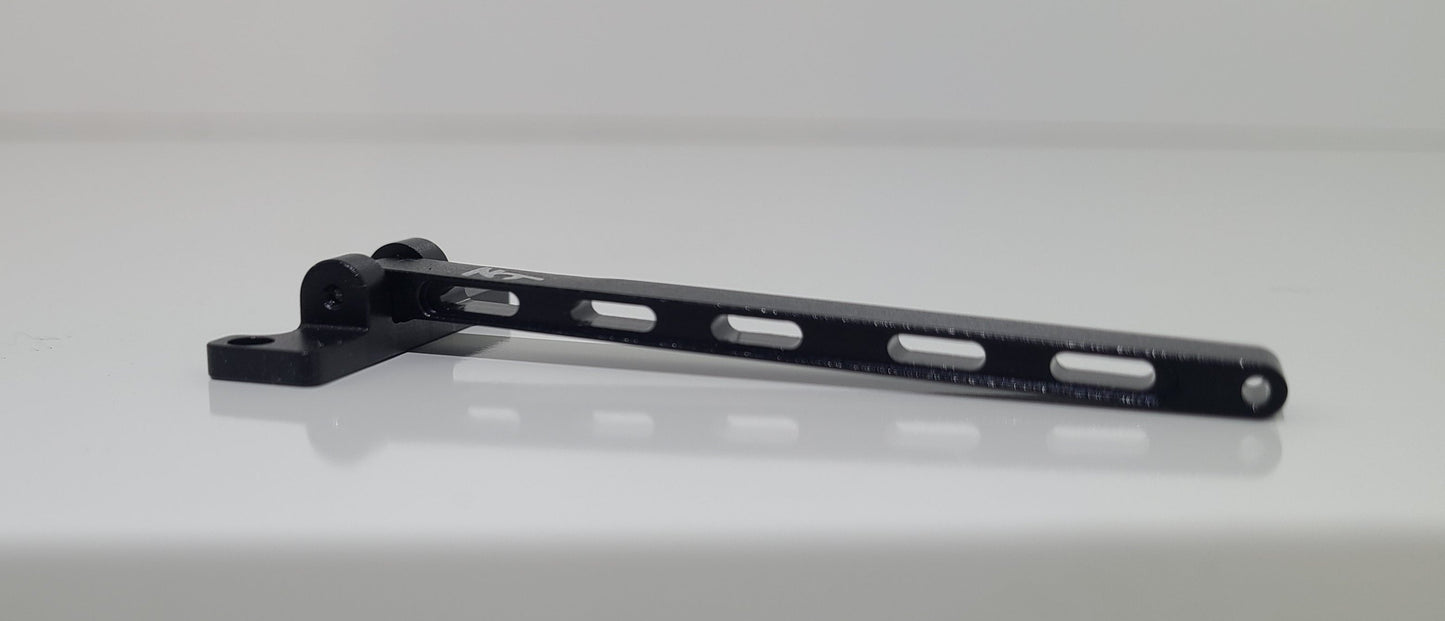

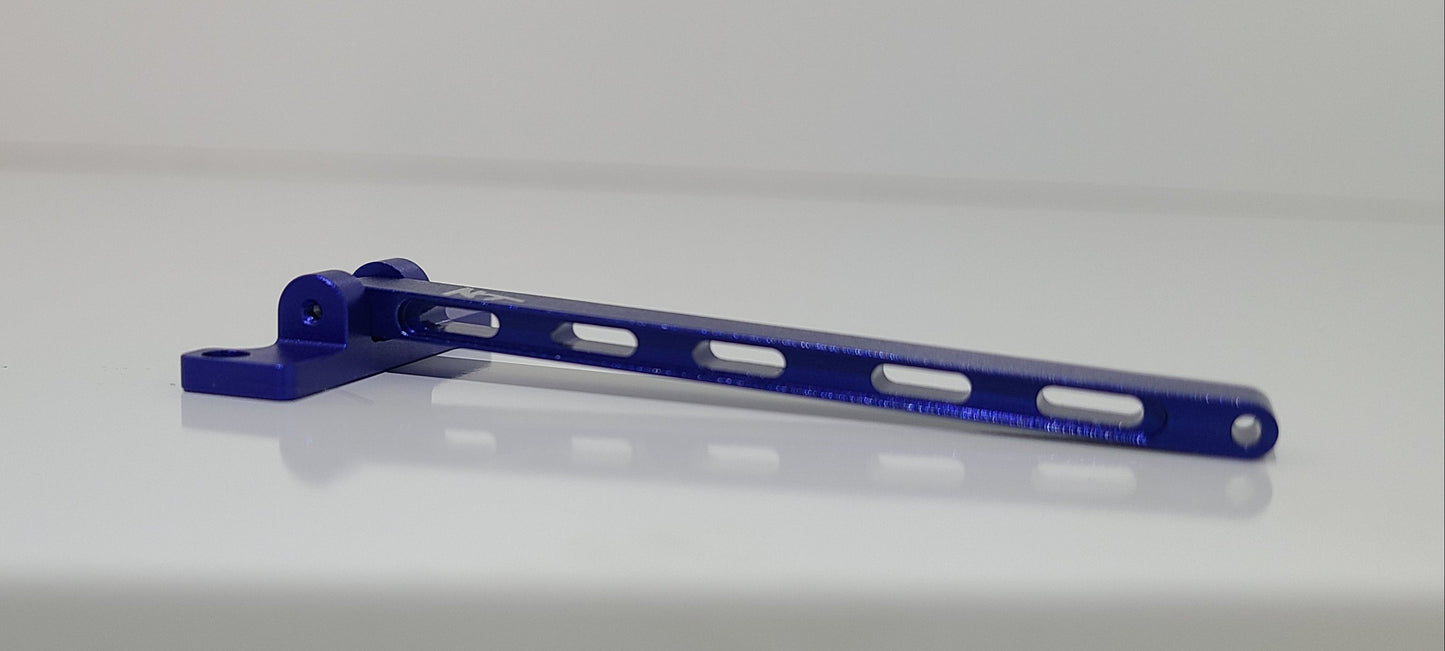

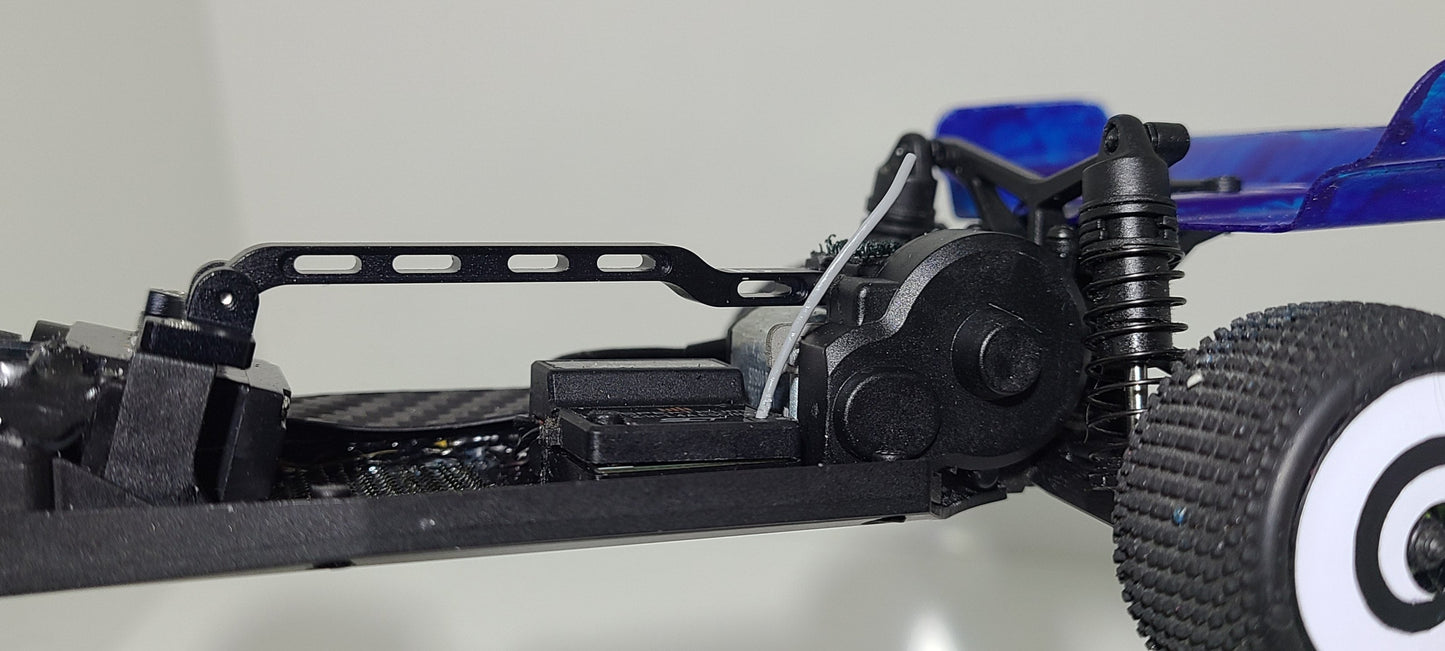

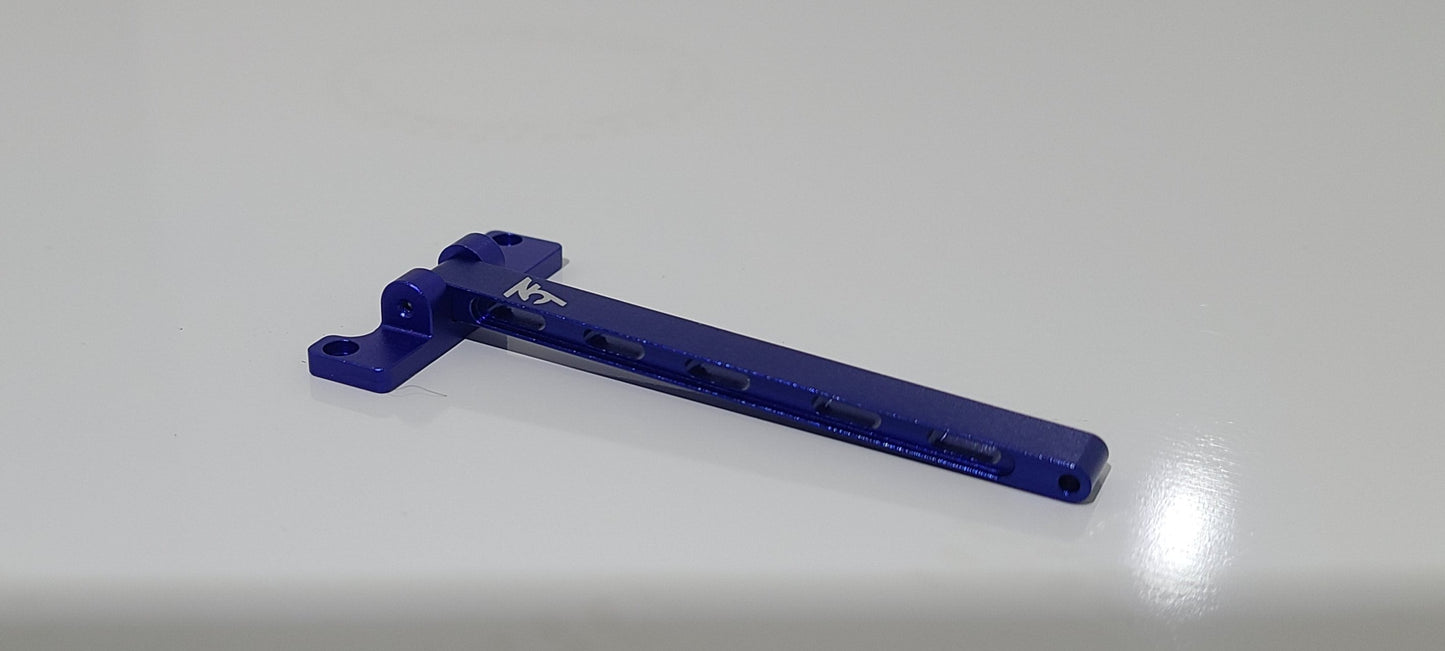

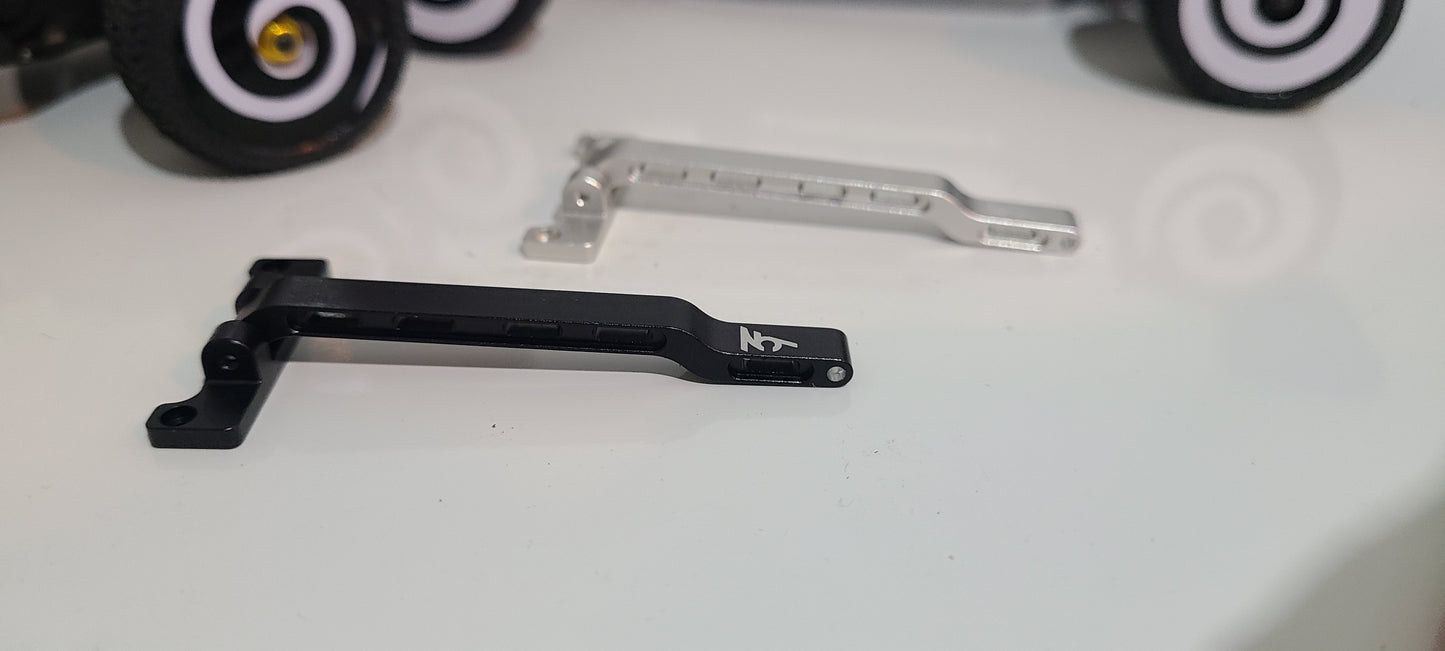

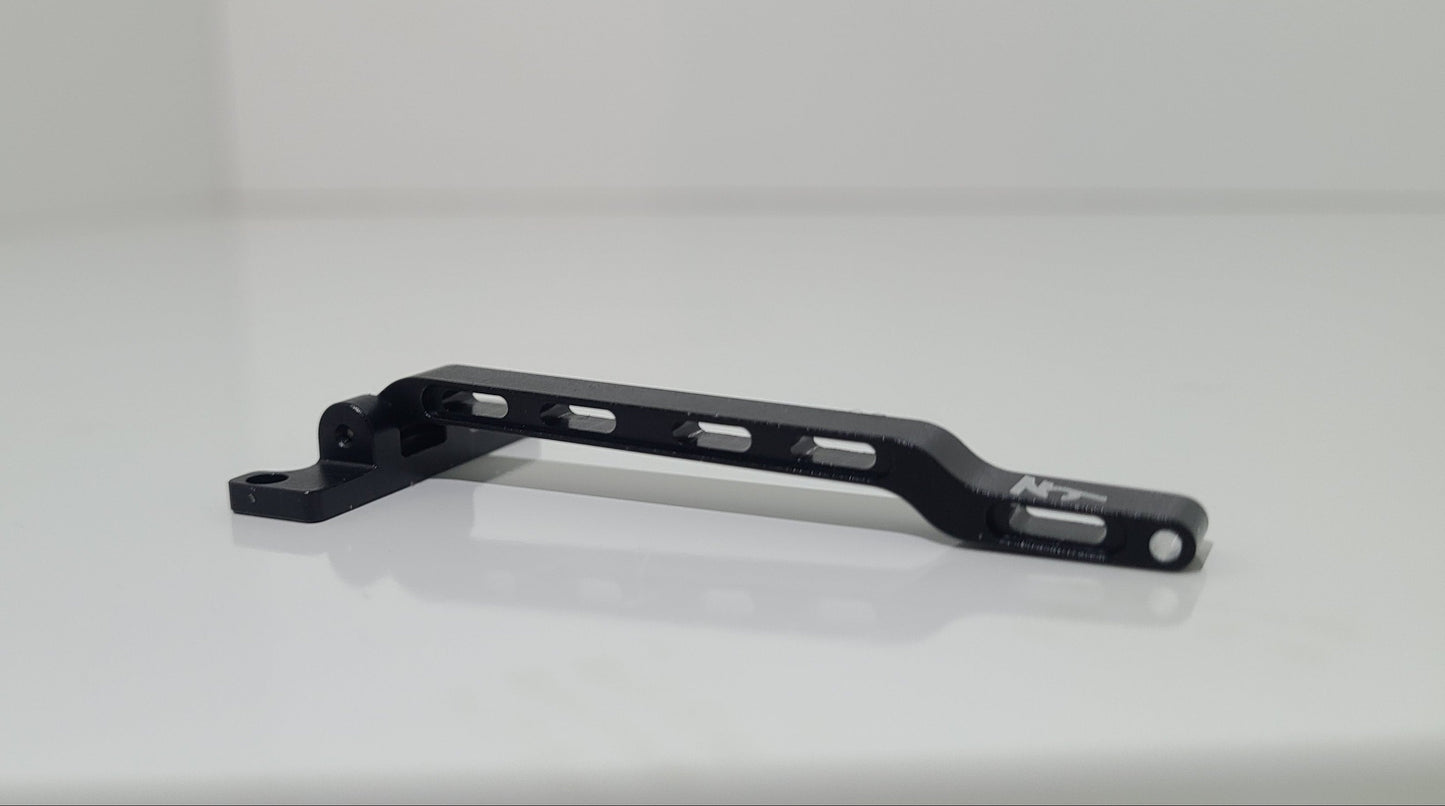

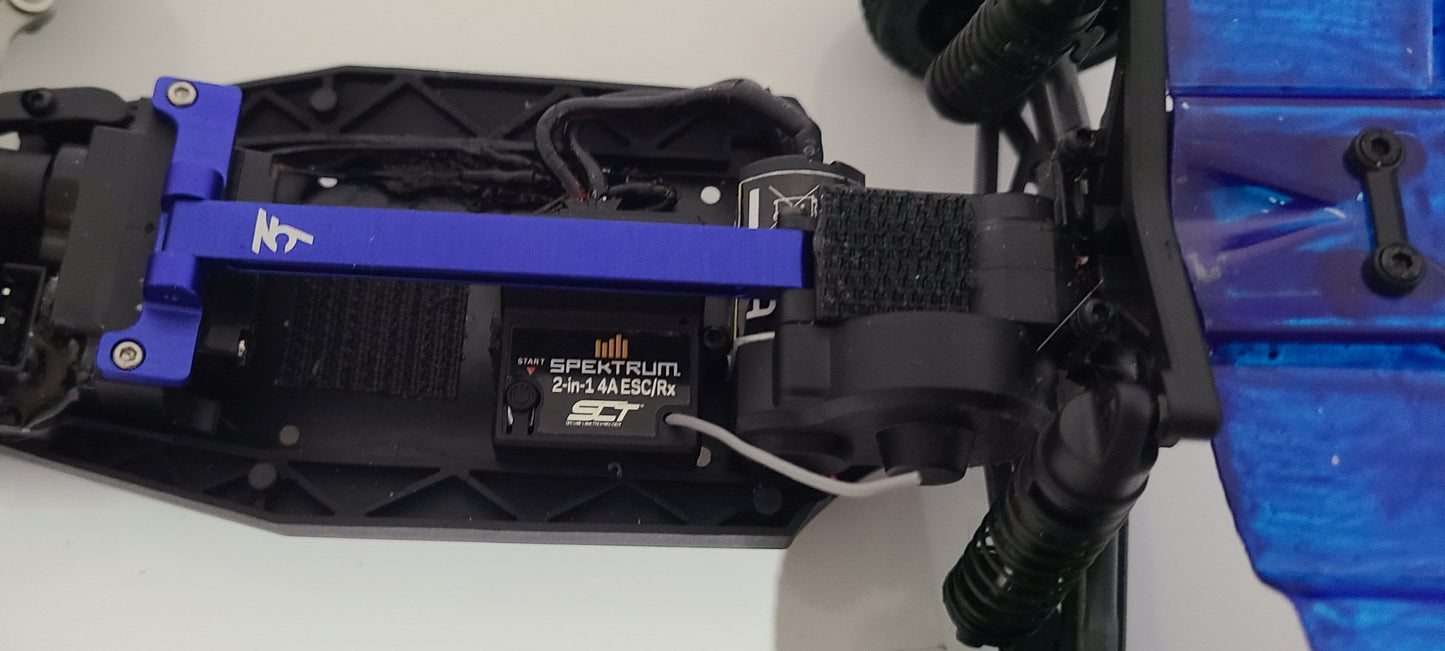

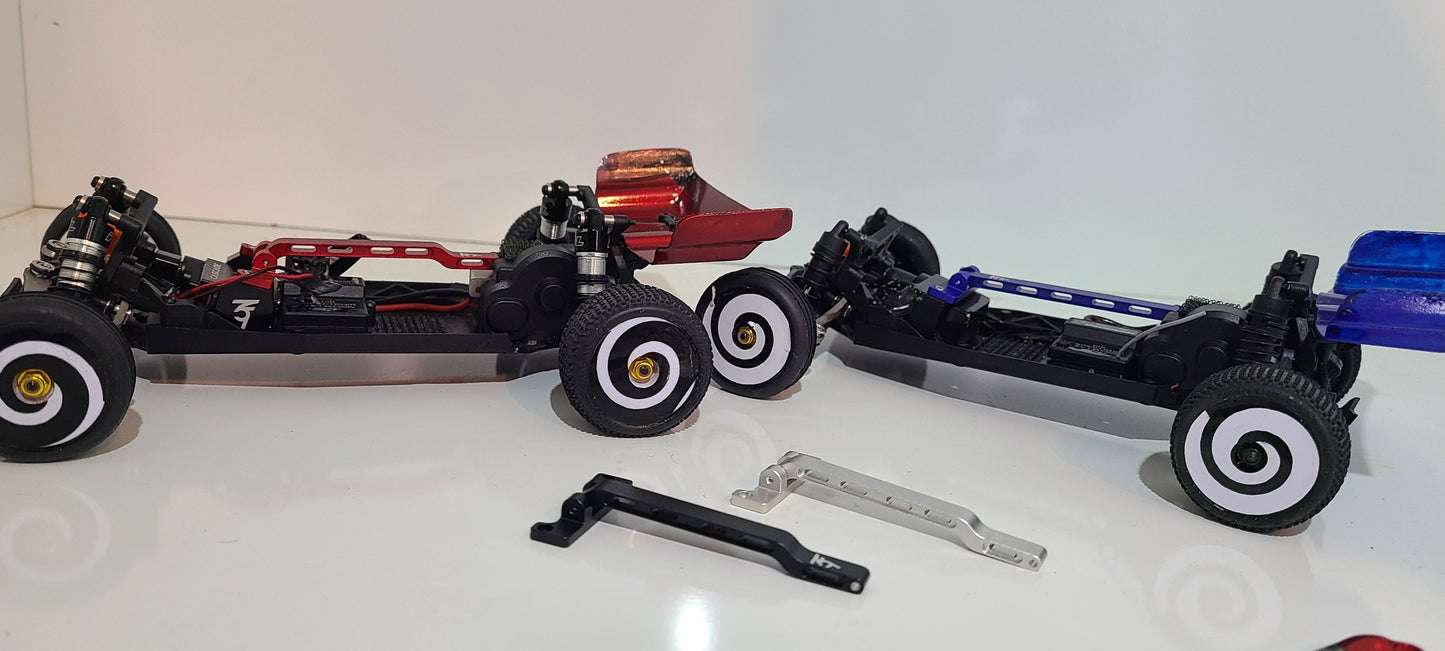

While eliminating the upper deck and battery tray, this has you put your ESC and battery on the chassis. Giving you the lowest CG possible! Better handling! Improved stiffness! There are 2 options for the center brace, a Straight version for the minimalist, and a Raised version to give a little more room for bigger electronics.

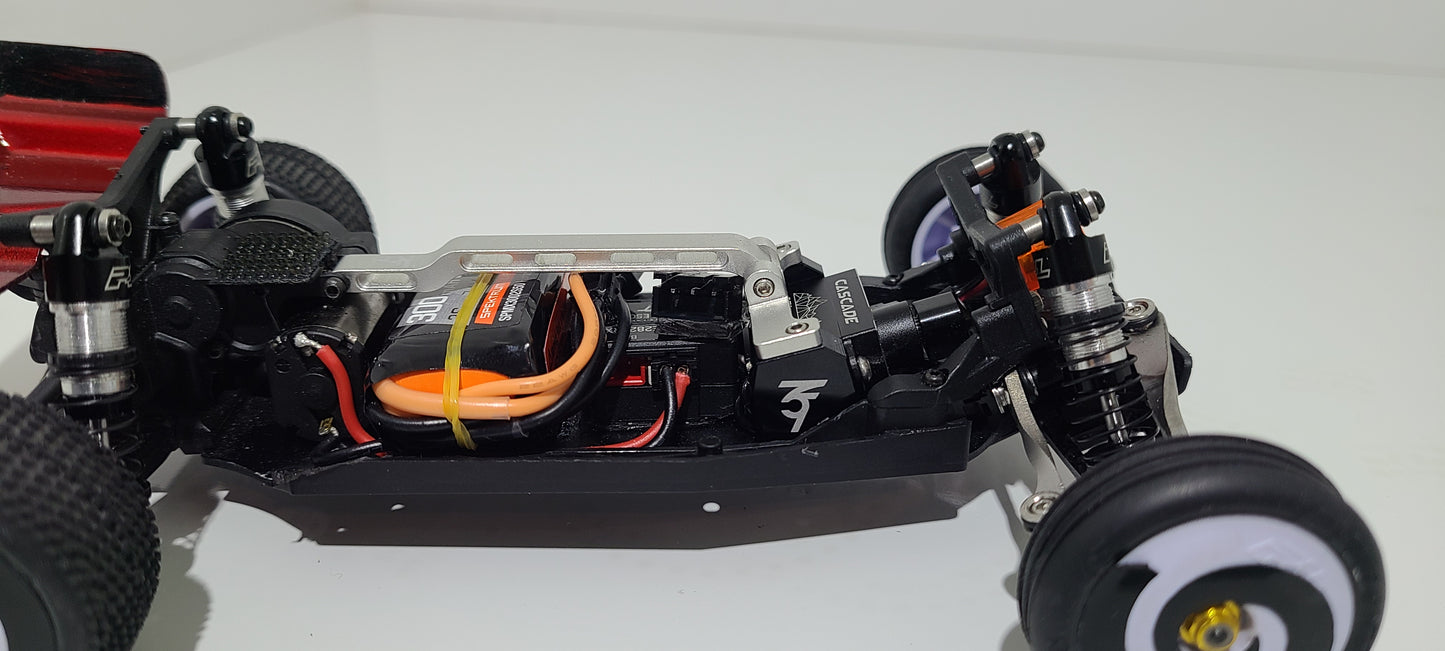

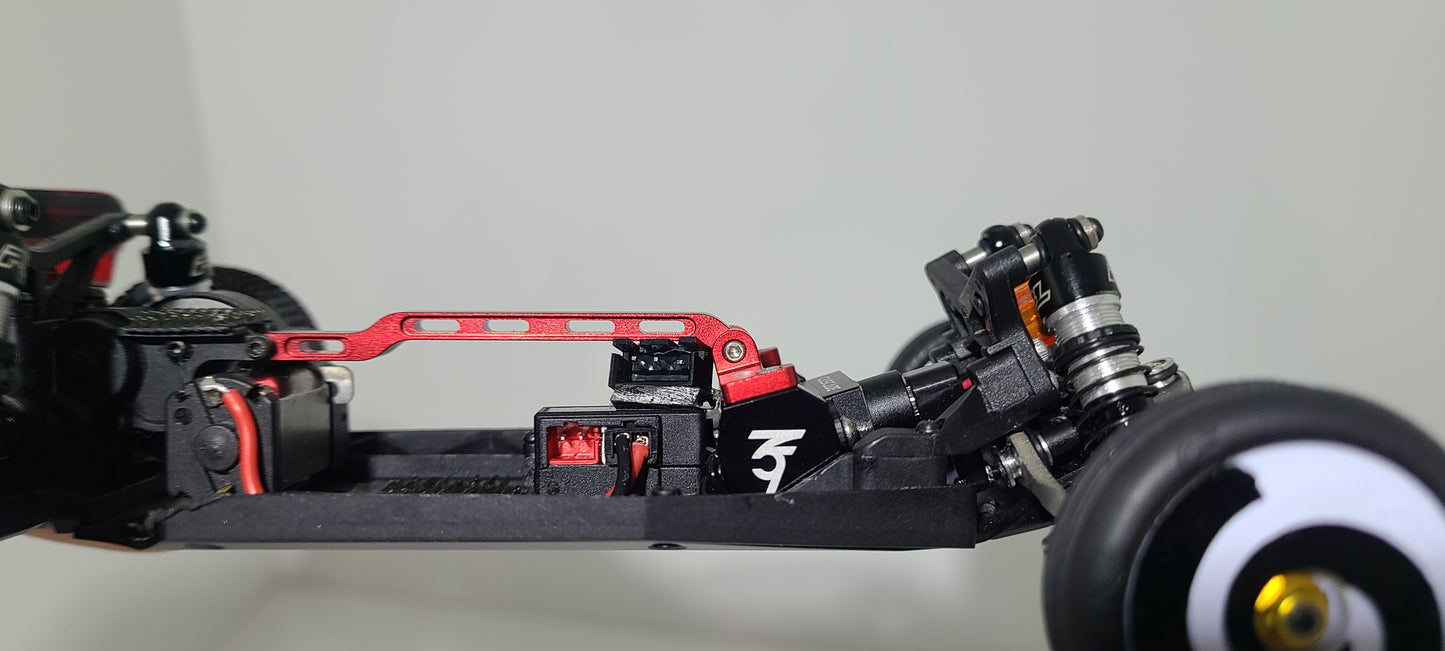

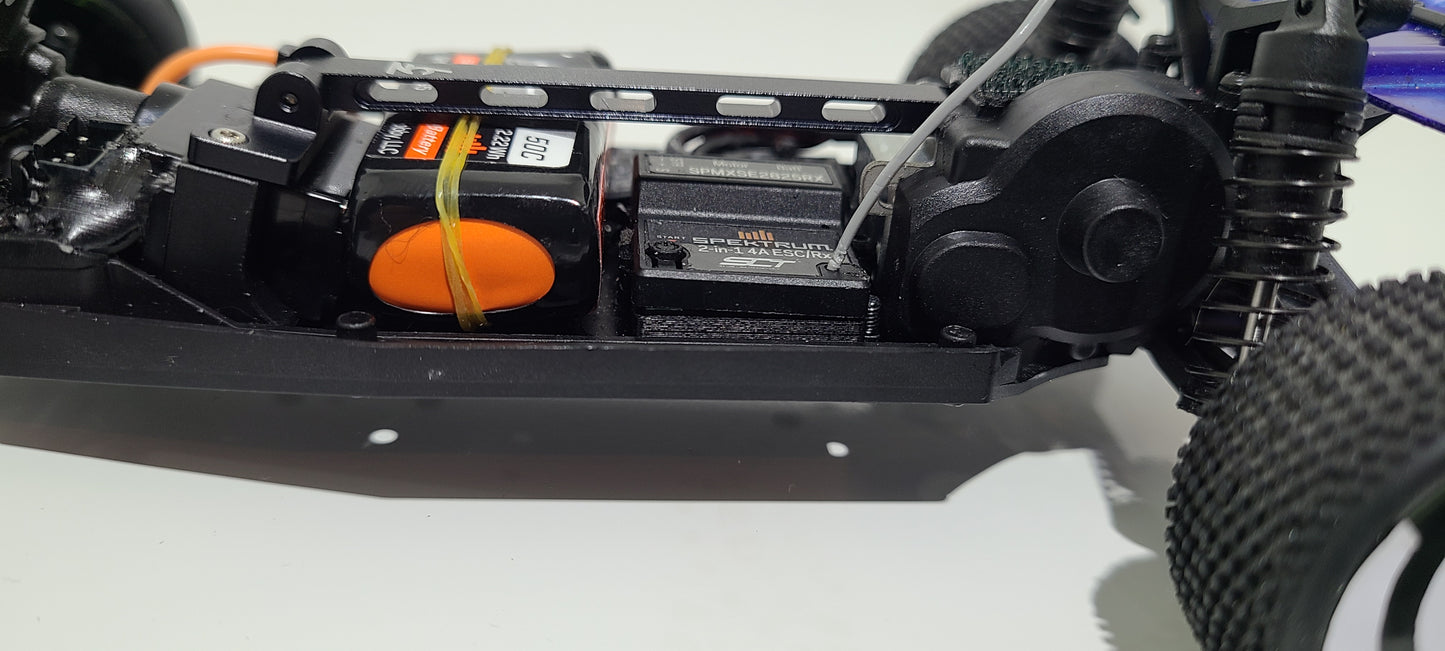

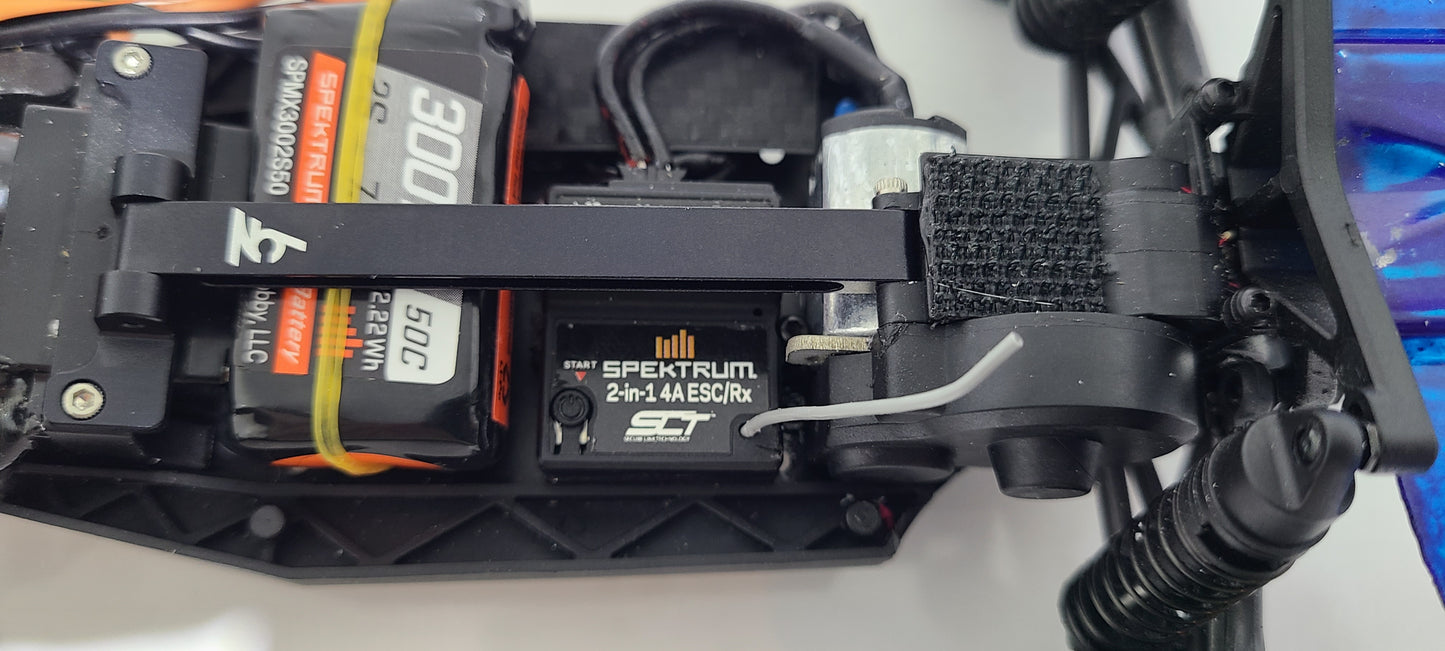

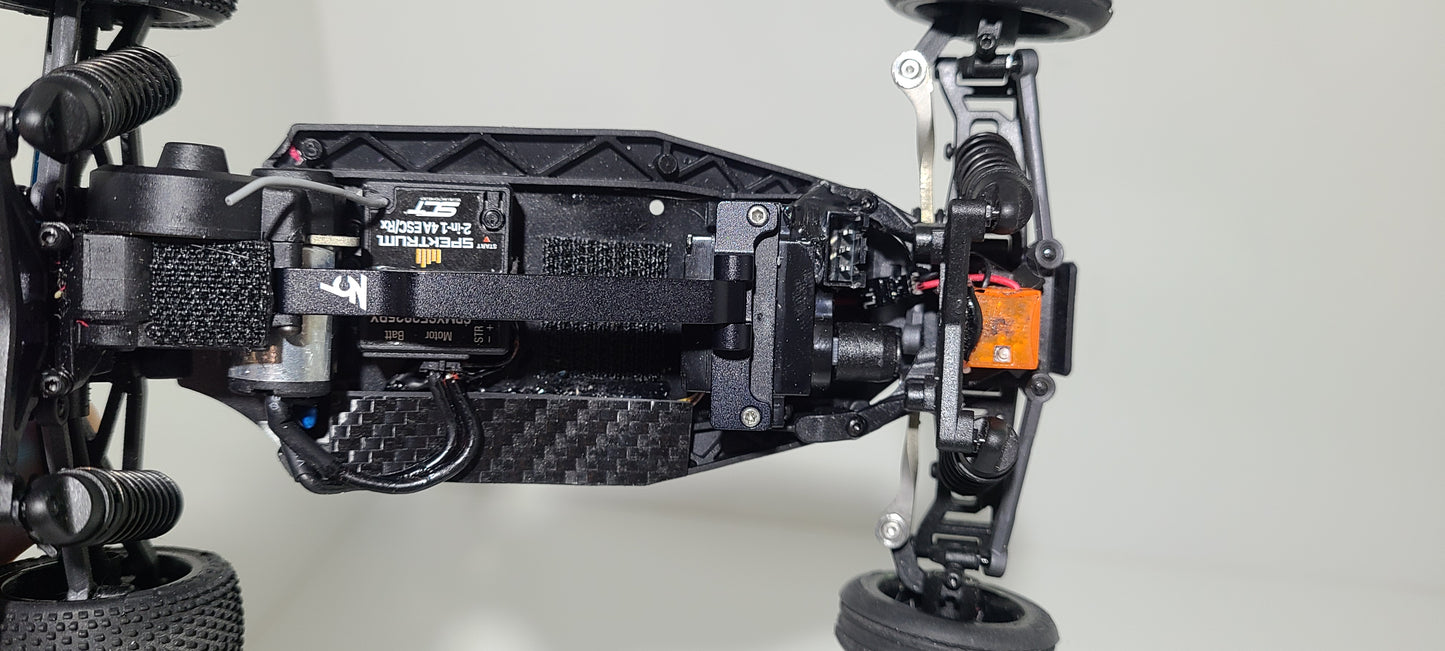

For the best Low CG layout using the stock Servo, ESC and brushed motor, use the Spectrum 300MAh battery with the stock servo or similar size battery 35mm x 20mm x 12mm, as it has a smaller footprint and extra punch of a 50c burst rating over the 30c, wider 350mah stock battery. The stock battery can fit with the raised center brace but at a slight angle.

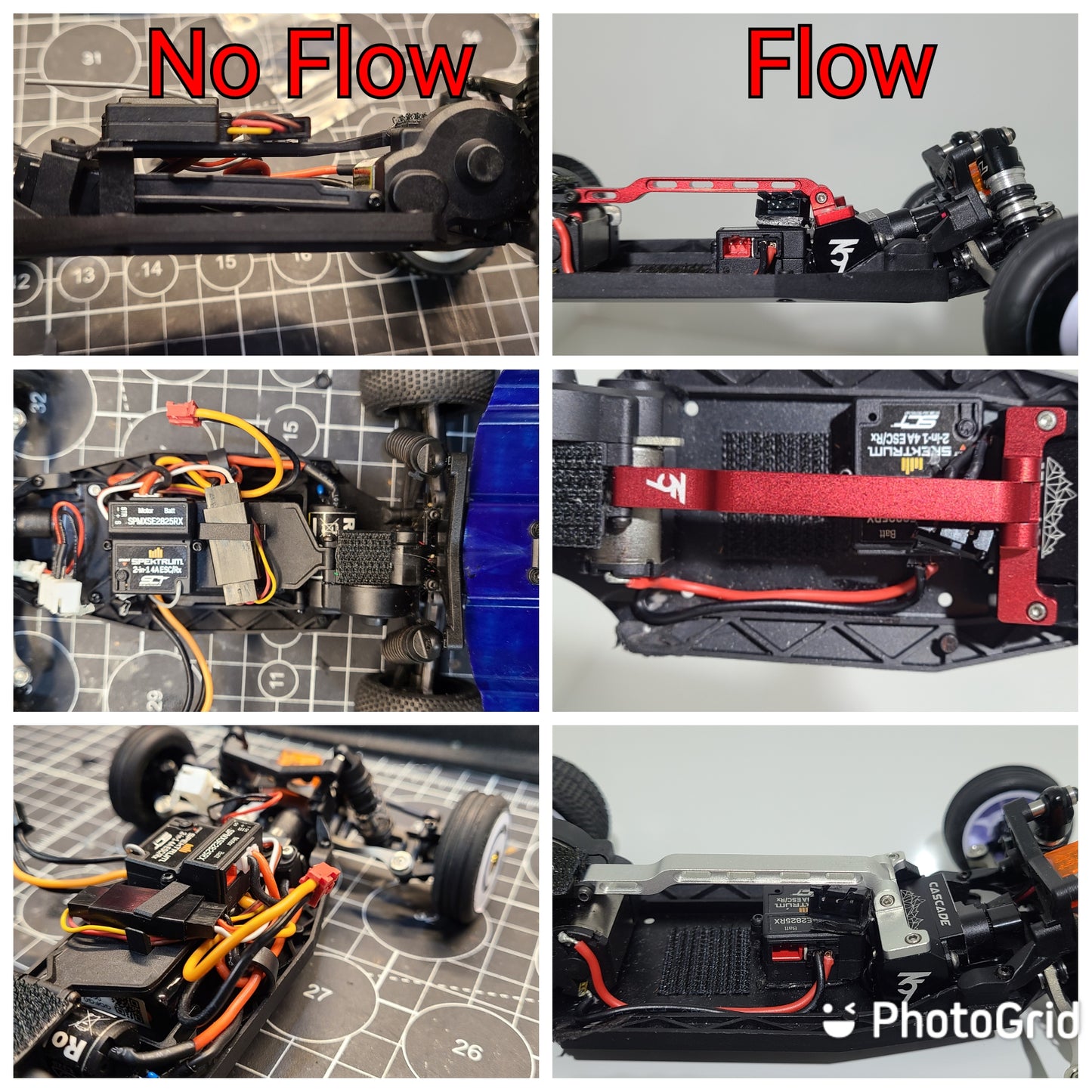

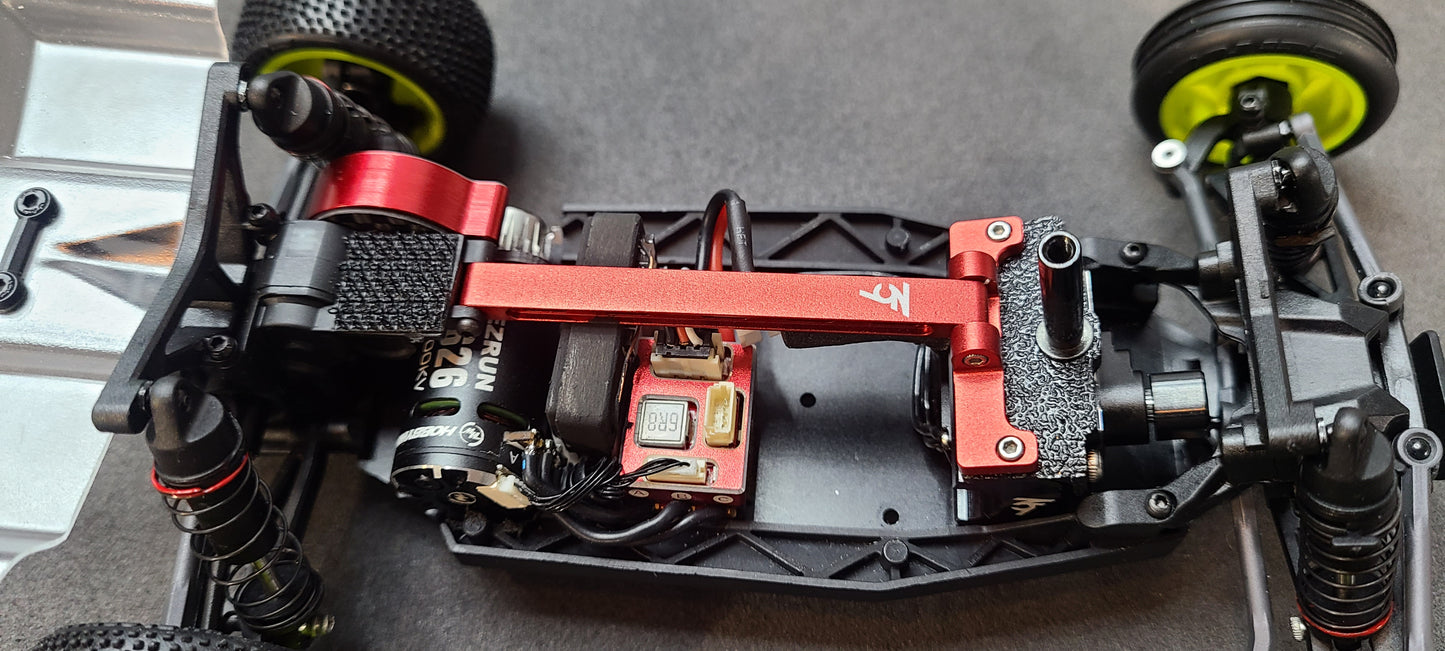

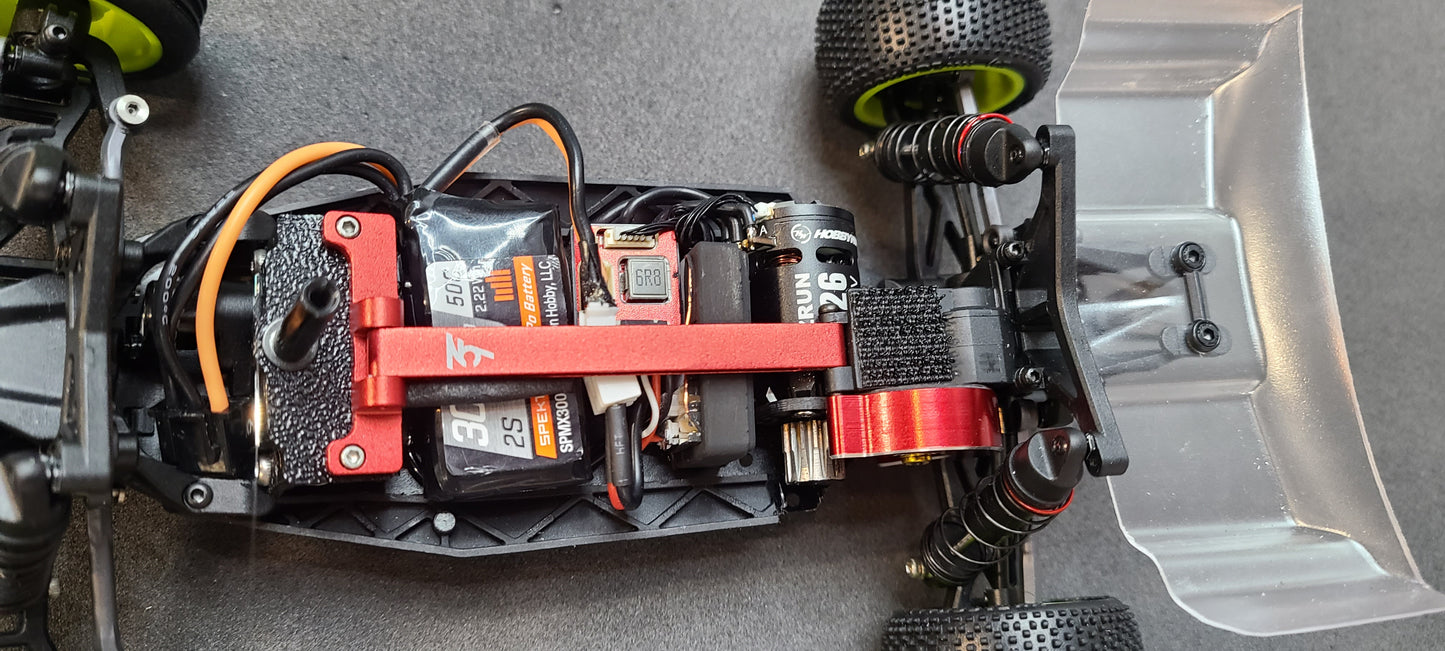

These are just a few ways to layout your electronics. Sky is the limit with the open space  and simple layout of the Bare Bones Brace.

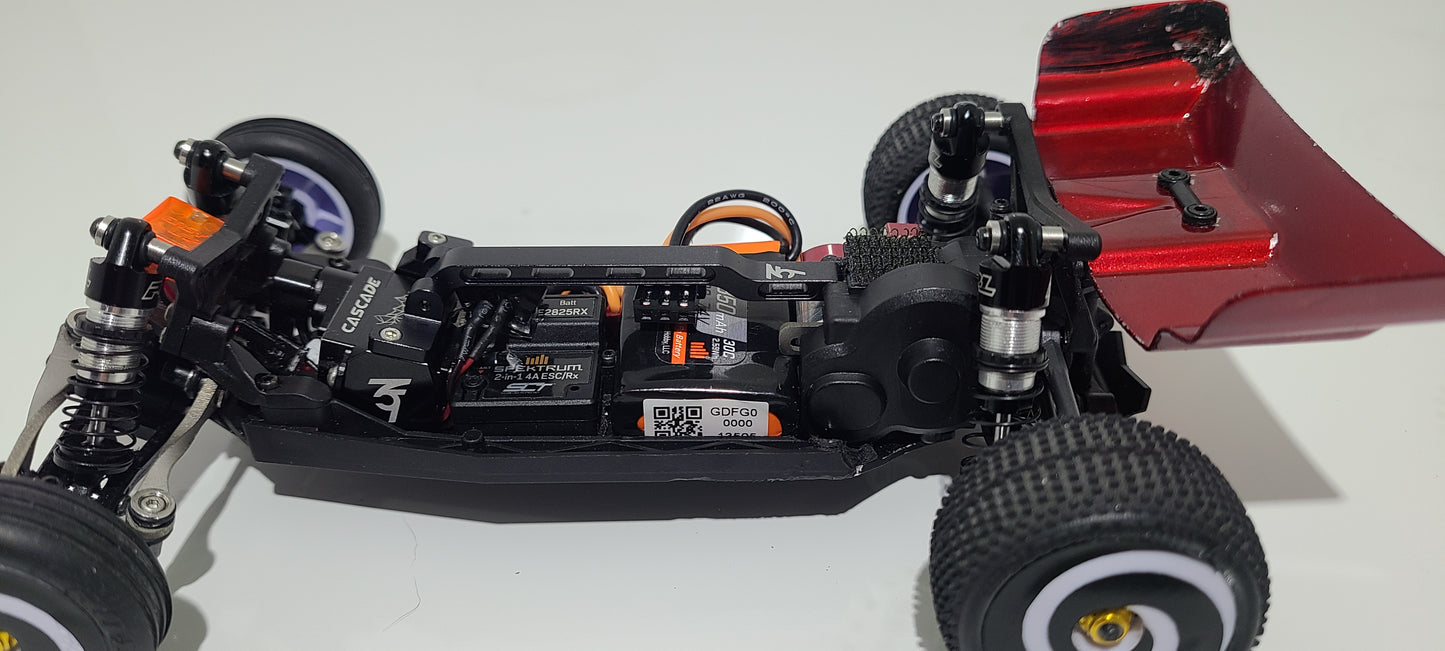

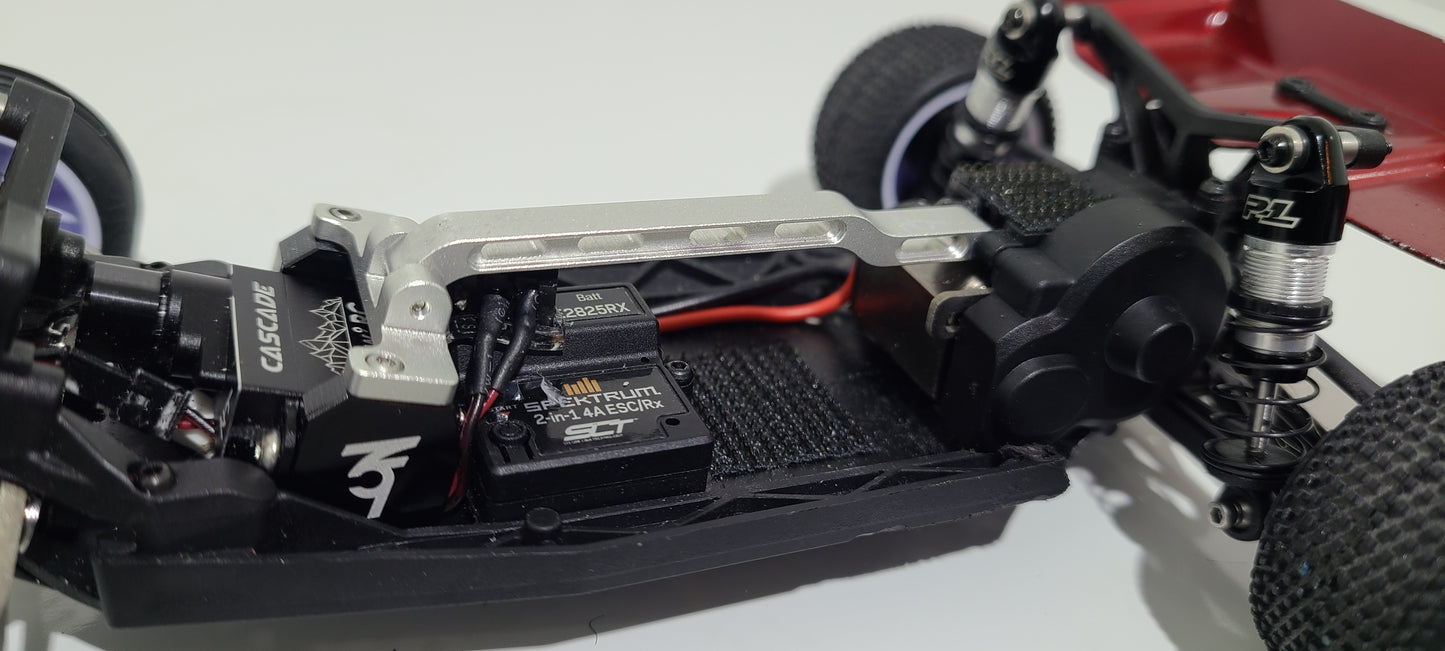

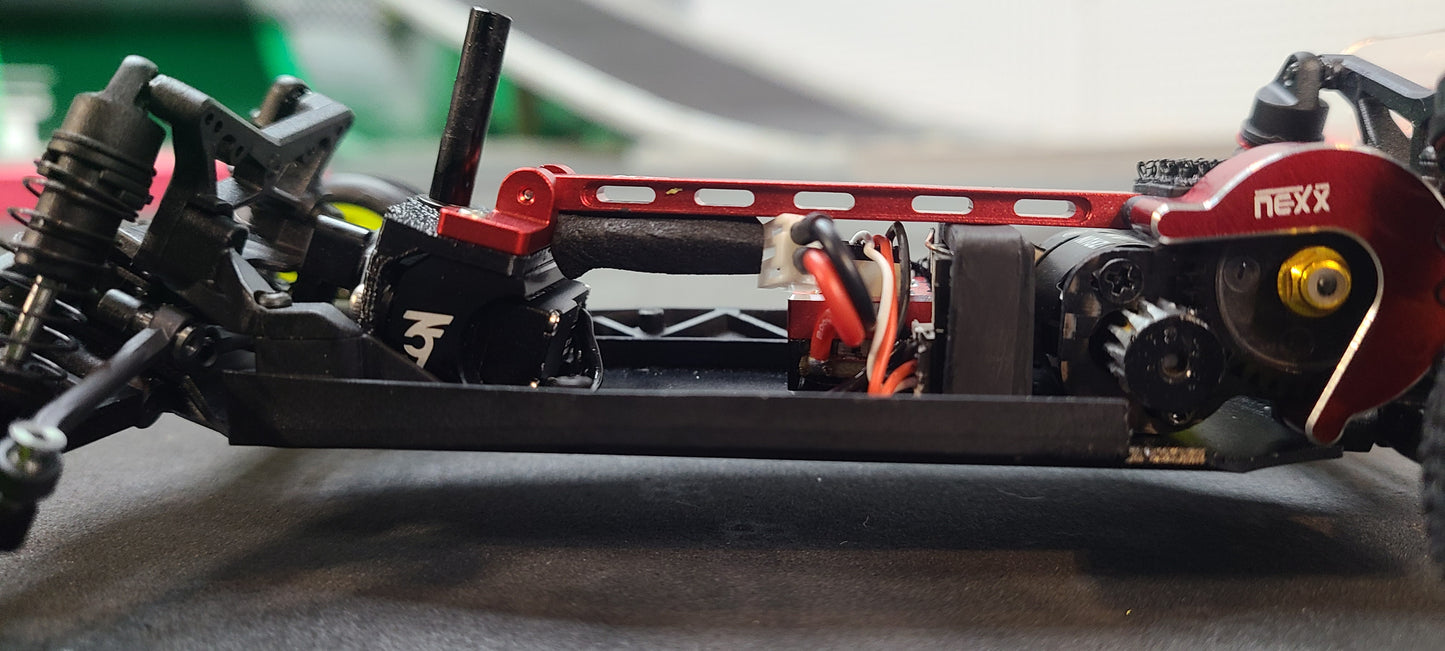

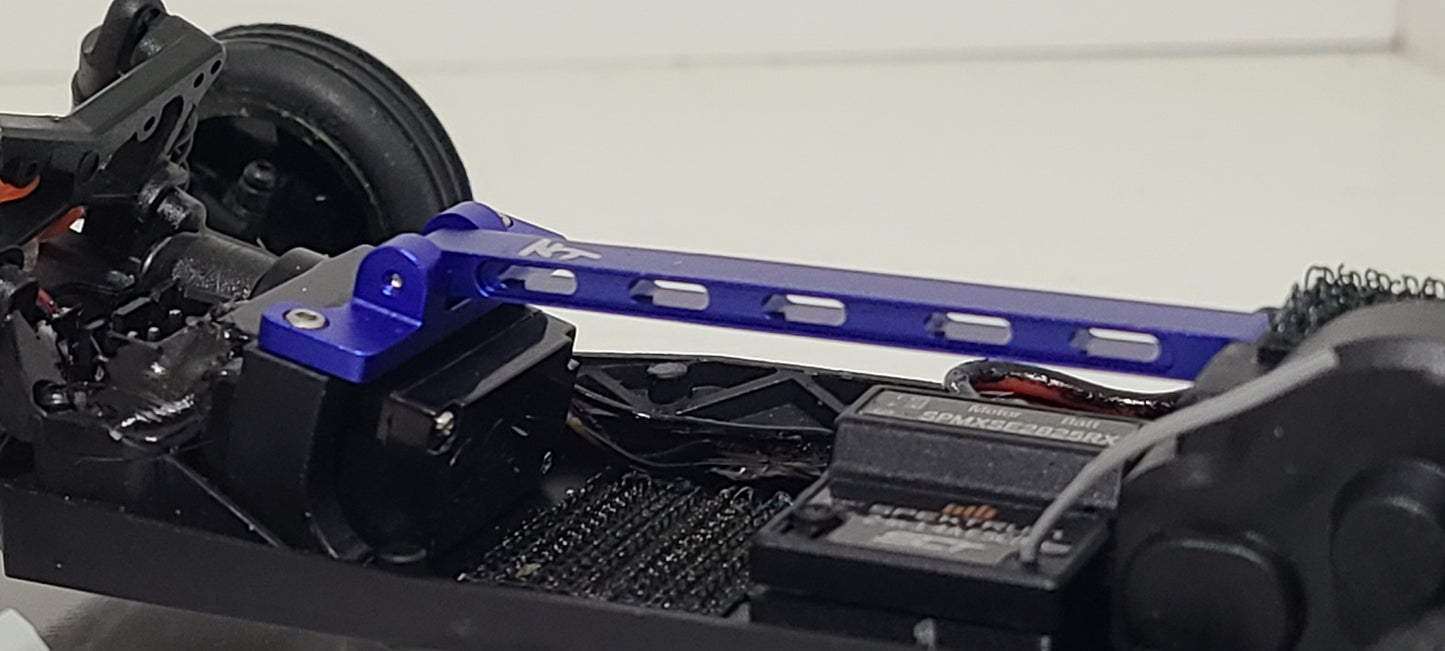

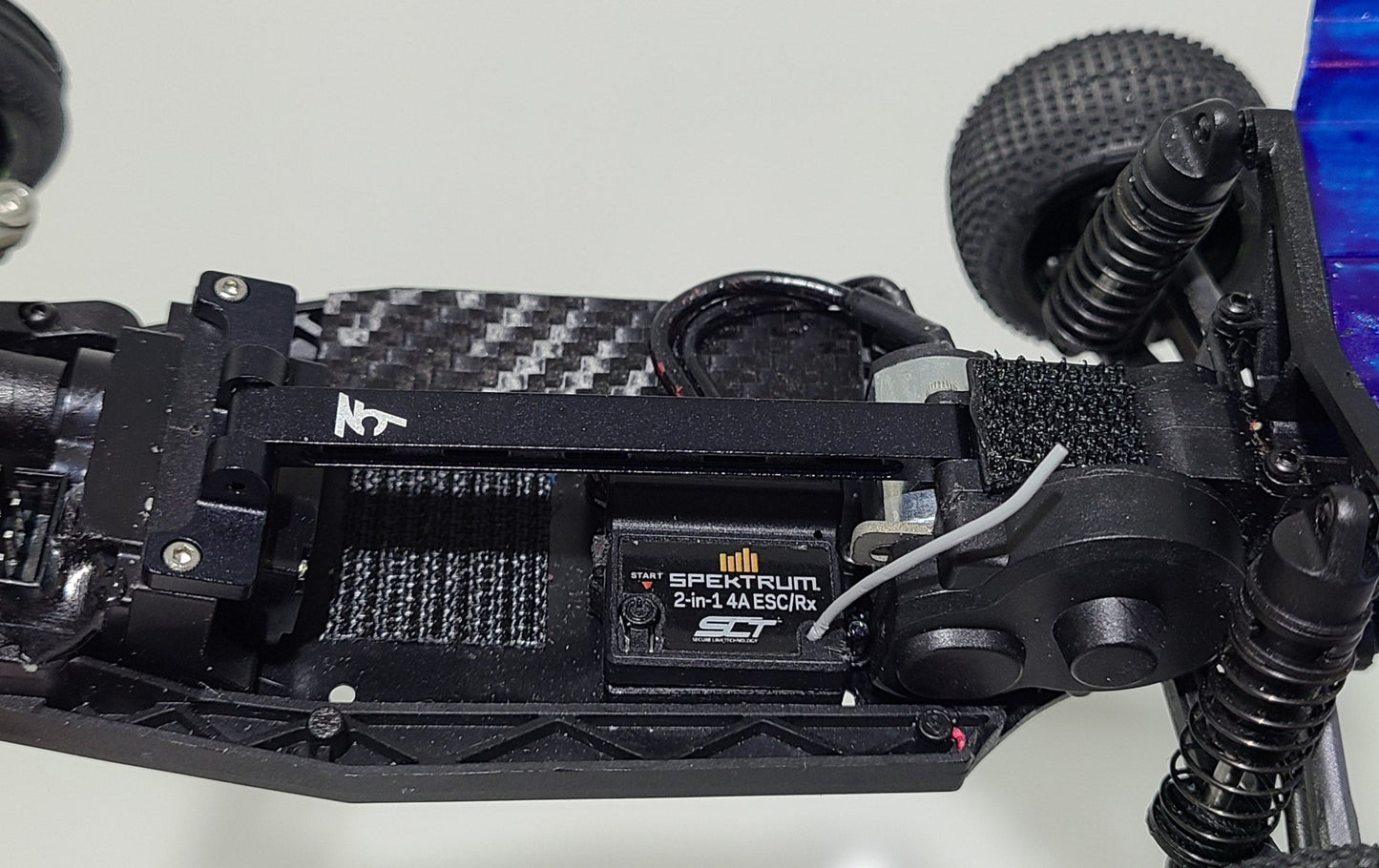

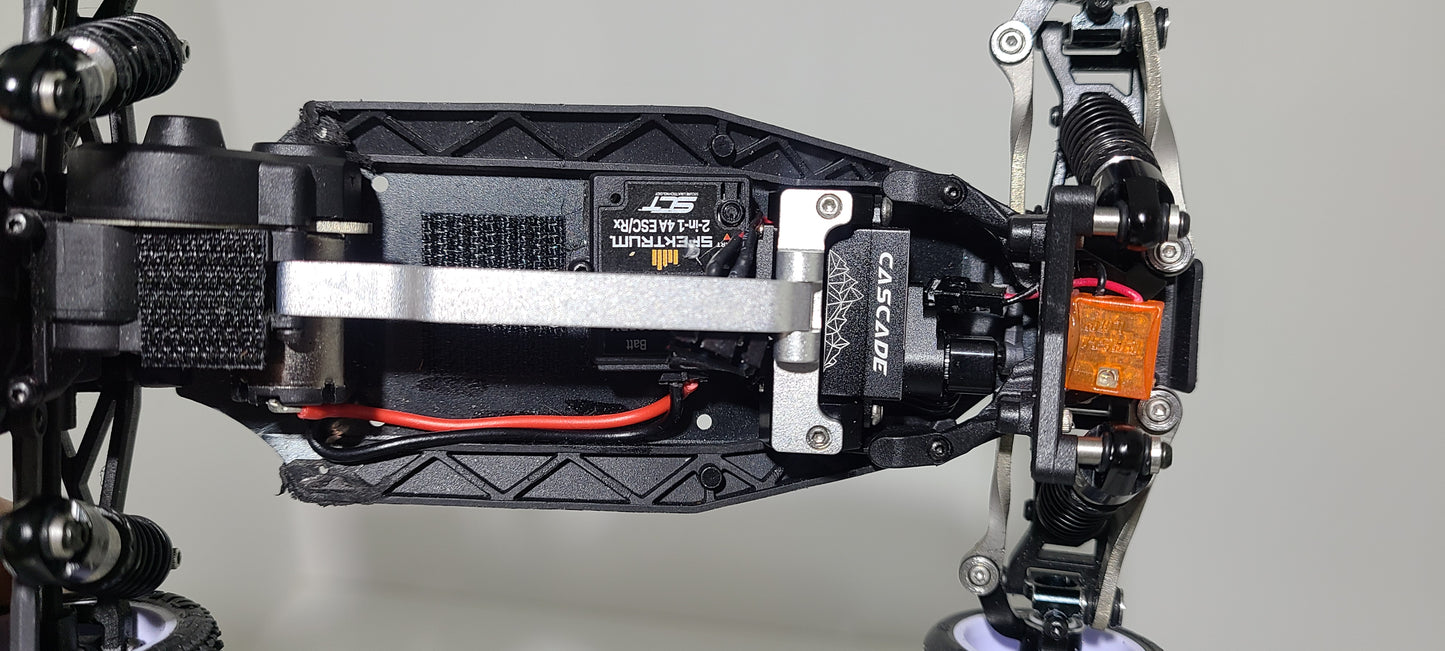

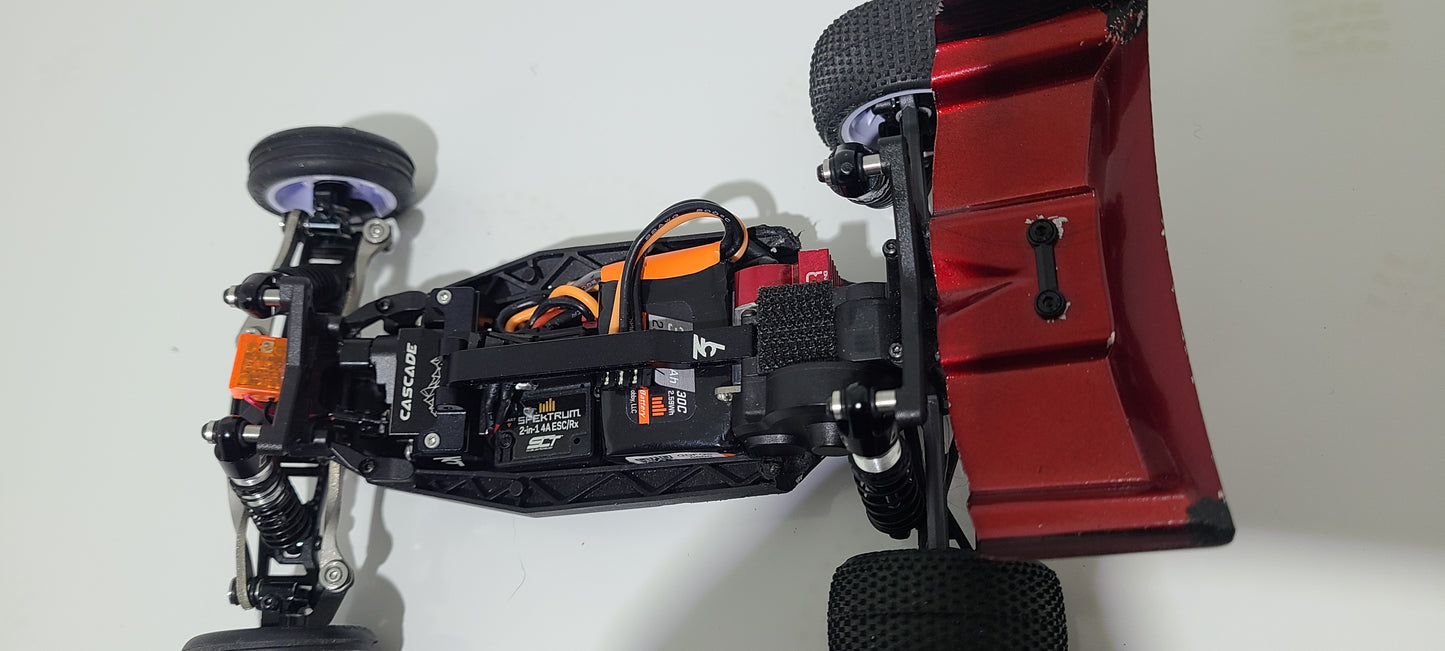

For the best Low CG layout when using the 3Flow9 RC Cascade Servo and Cascade mount with the stock ESC/motor, you can use the stock 350mah battery to lay flat as the Cascade servo is smaller and moved forward. This allows for more room on the chassis or use a smaller, lighter 300mah battery and have ample room.

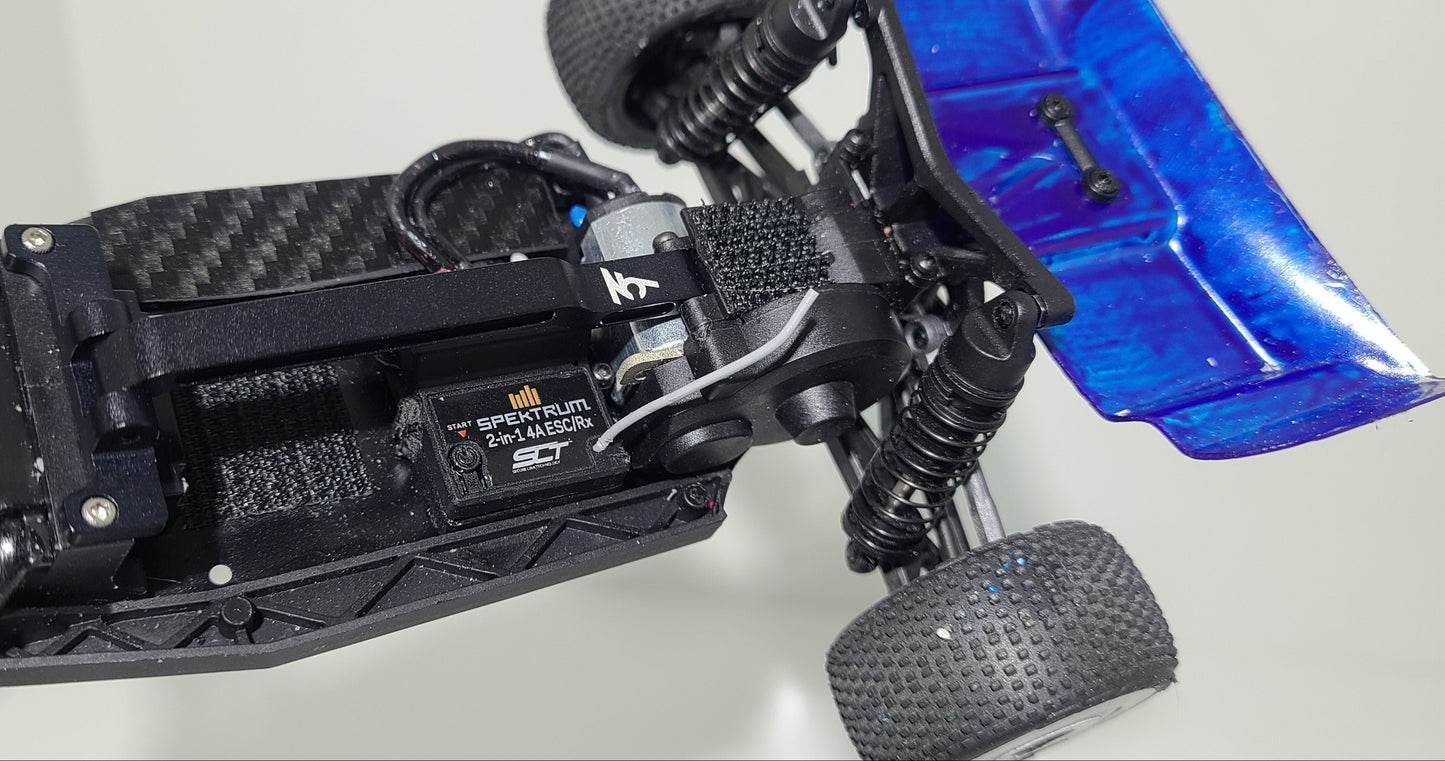

**When moving the ESC, the bottom of the case is built into the stock upper deck. You can either cut away the upper deck, leaving the base to the ESC or if you don't want to go chop chop, you can add the Flow Base for the stock ESC/RX to your cart.

Weight Savings and improved performance with lower CG! When you get rid of the upper deck, extra wires, and stay stock electronics, you lose 5 grams! If you upgrade to the Cascade servo and aluminum mount, you only gain 1.5 grams!

~Also, if using either of these two layouts, switching the ESC/Battery to the front or the rear of the chassis is a 2% front to rear weight bias difference.

This will mount to a stock buggy using the existing upper deck mounts. Pair it with the Cascade Servo and Cascade mount in 7075 Aluminum for unmatched durability, speed and superb finish.
