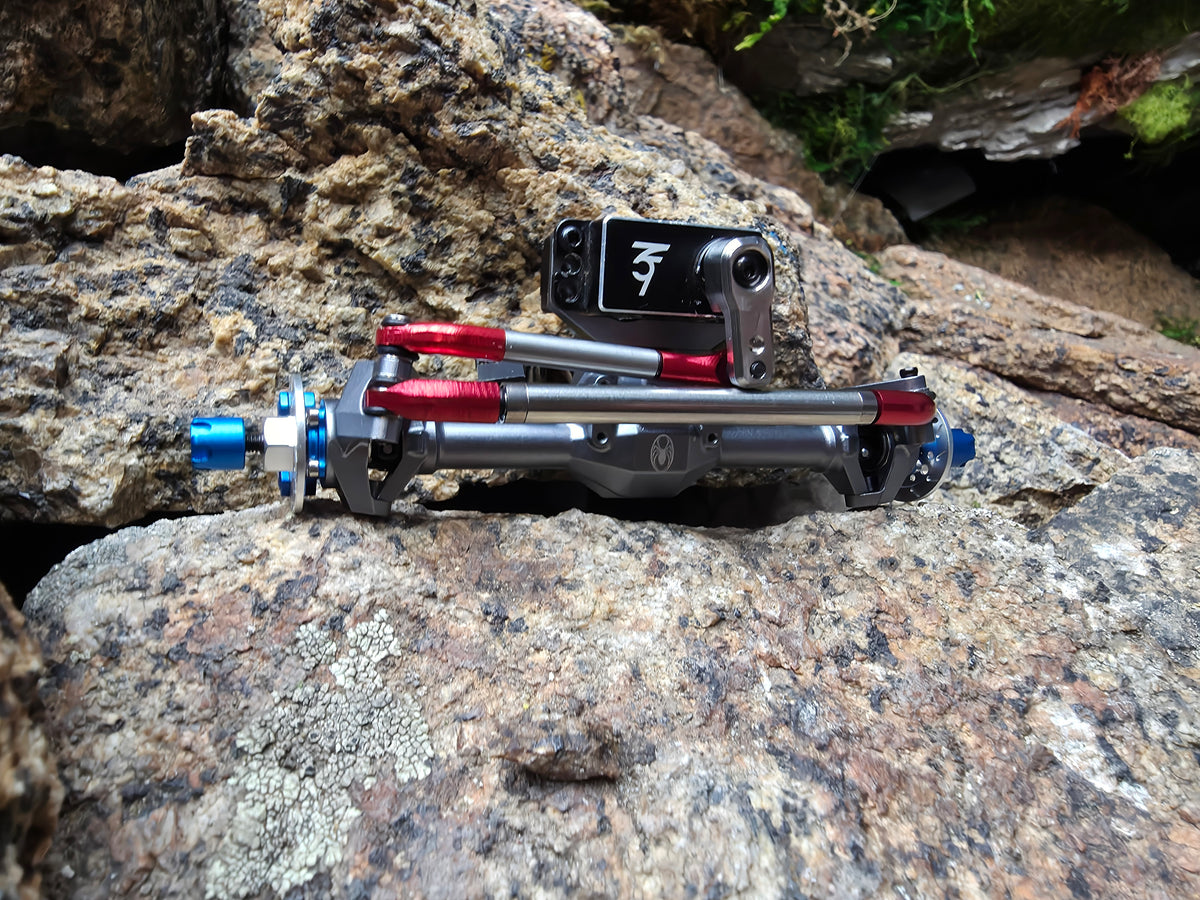

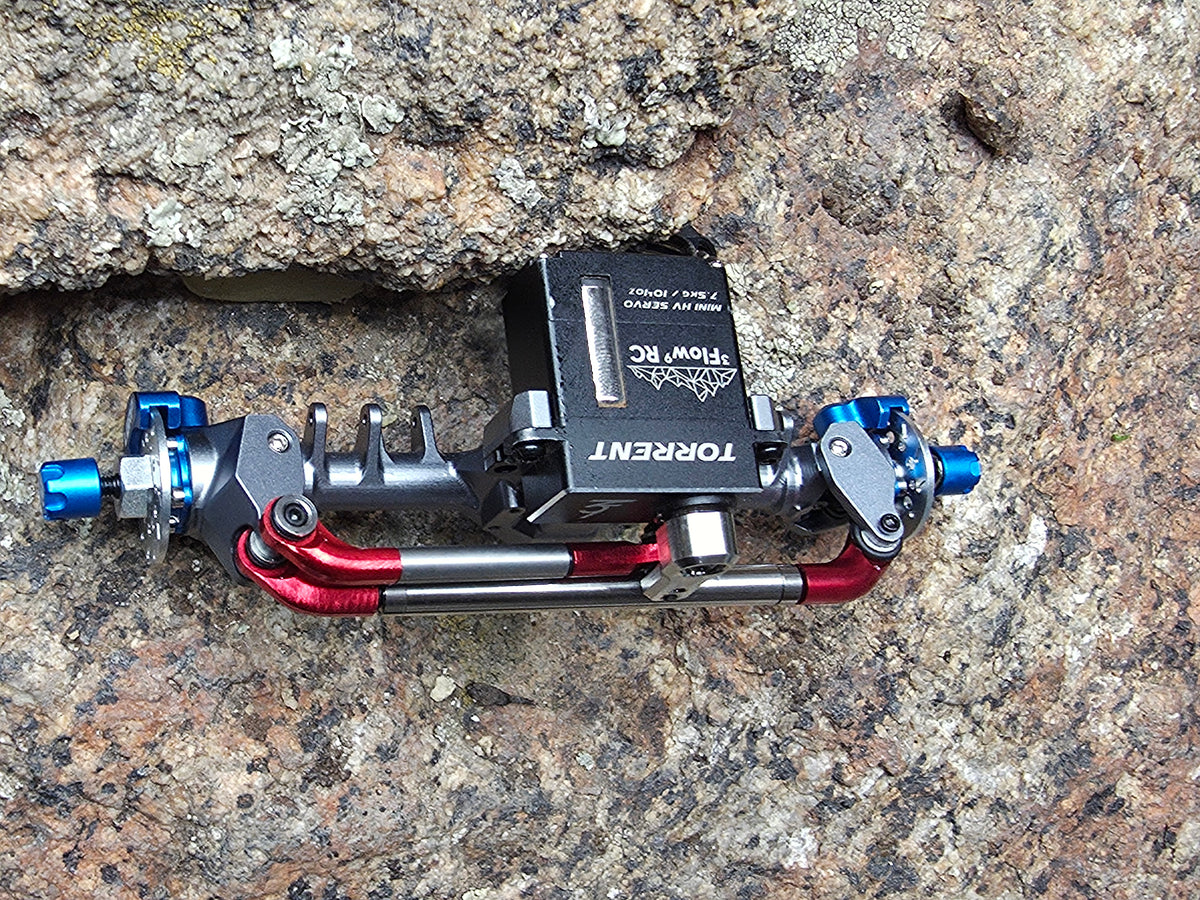

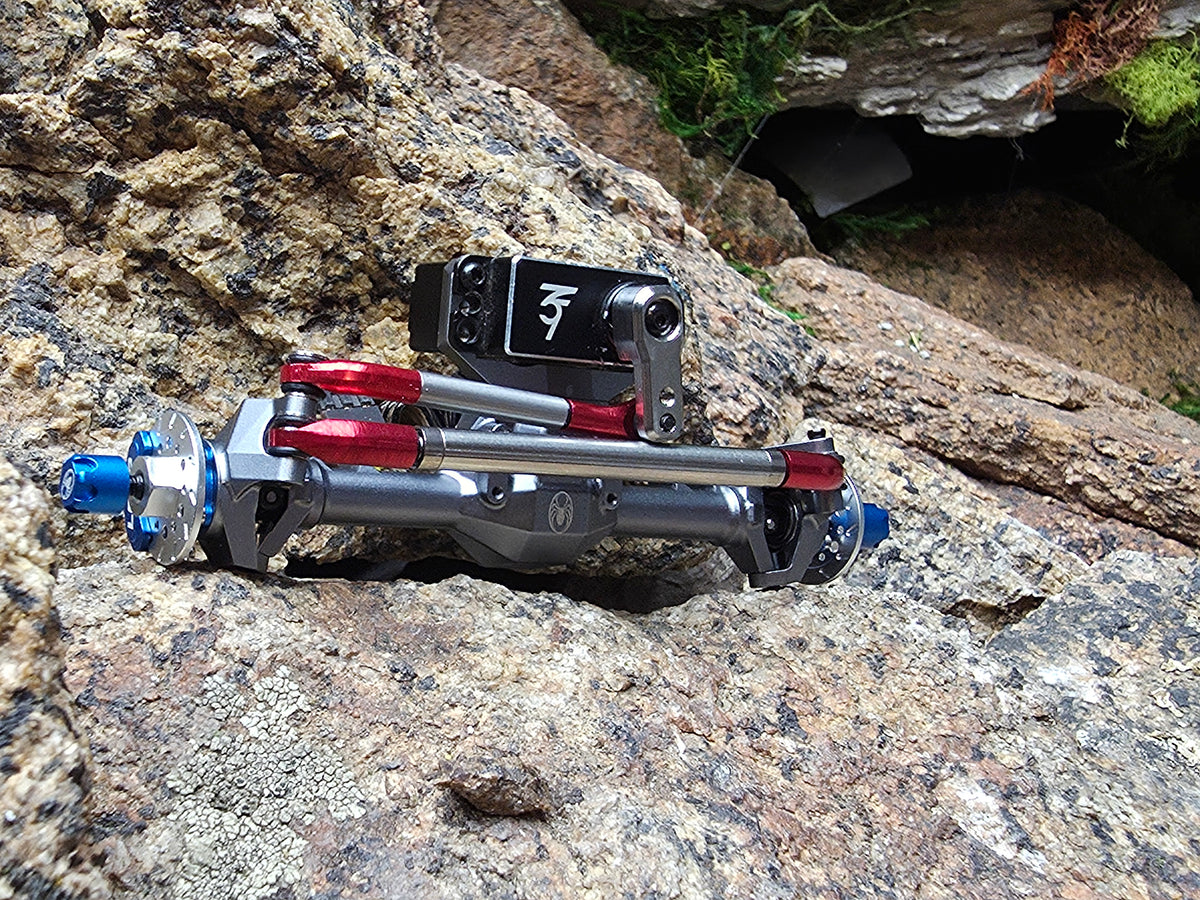

V2.1 Rolling Steel Steering Link - Fits LGRP Spider 9 Axles

Welcome the new sub variant V2.1 Rolling Steel Steering Link!

Fits LGRP Spider 9 Axles

This eliminates the faux hydraulic ram steering setup

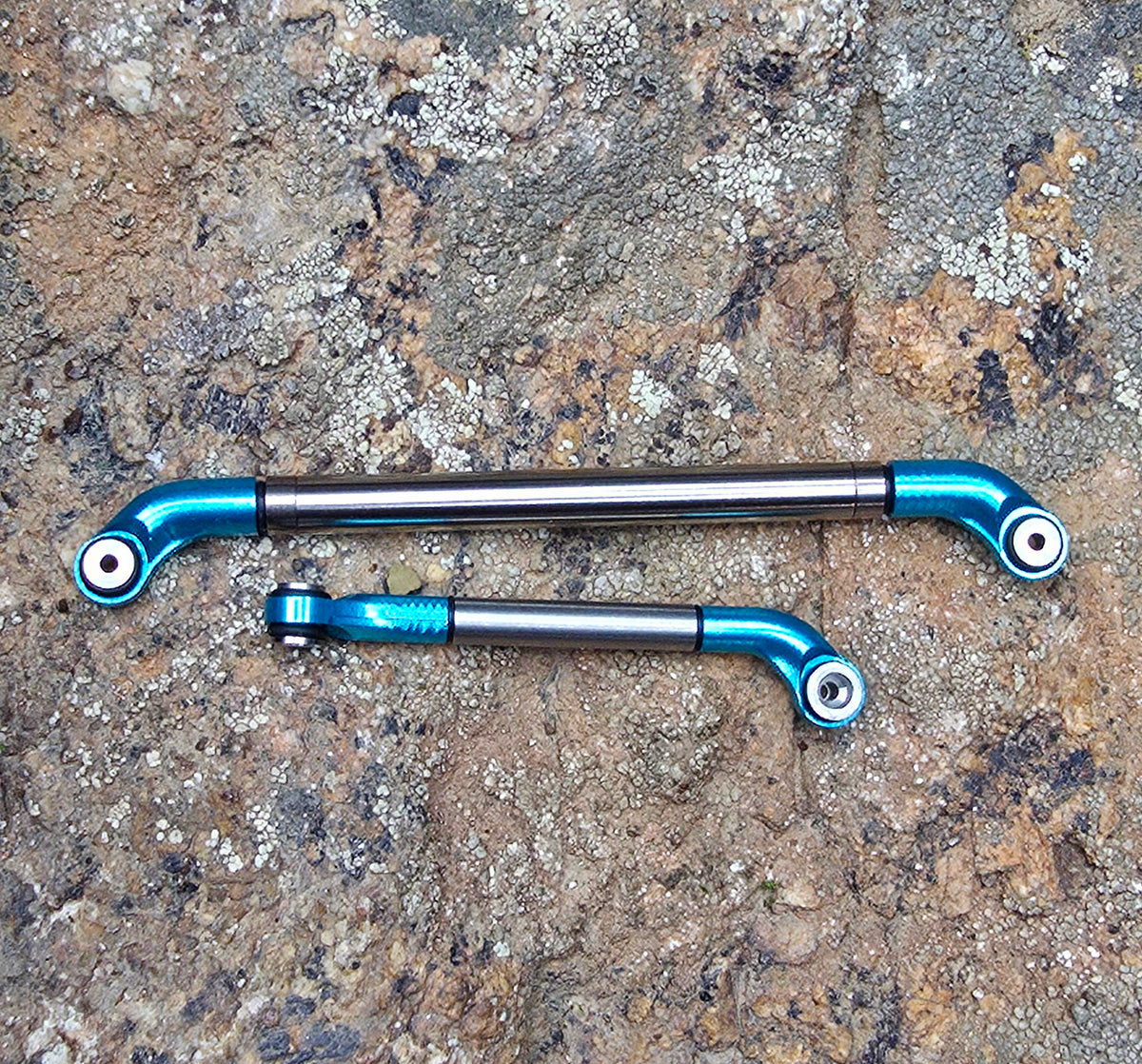

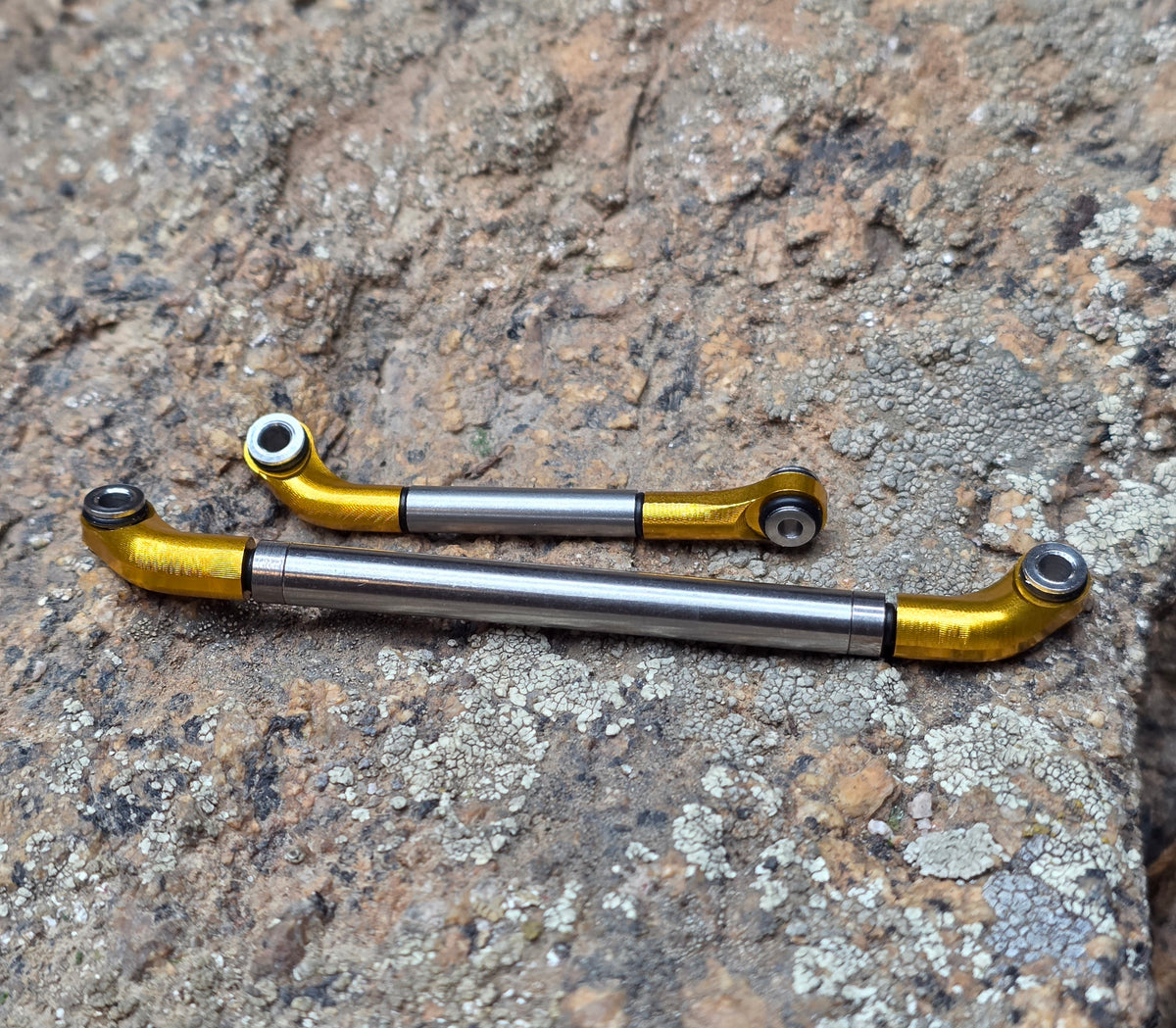

This uses the new V2 Offset Rod ends but with a CNC'd Rolling stainless steel tube instead of a full row bearings. There is one bearing on either side of the Steel roller to keep things smooth and flowing allowing the Steel roller to move freely as it gets caught up on any snags. The R.S.S.L weighs slightly more than the 5mm R.B.S.L and is considerably stiffer. Toe out can still be achieved but will need to add the supplied O-rings to take up any gap once unthreading the rod ends for toe out.

*Note with the added caster in the knuckles, the servo horn will need be shorter than 19mm. may need to slightly file the bottom of the horn to clear the Rolling Steel roller.

Comes with M1.4 hardware for the knuckles

Choose your pivot ball size for the servo horn, M1.4, M2 or M2.5.

The R.S.S.L only comes in one diameter size of the 5mm Stainless steel roller. Color options are still available as well as the Black Brass Rod ends

WEIGHT (Stock link weighs 6 grams)

V2.1 with aluminum rod ends -13.5 grams

V2.1 Black brass rod ends - 17.5 grams
